AKG CK93

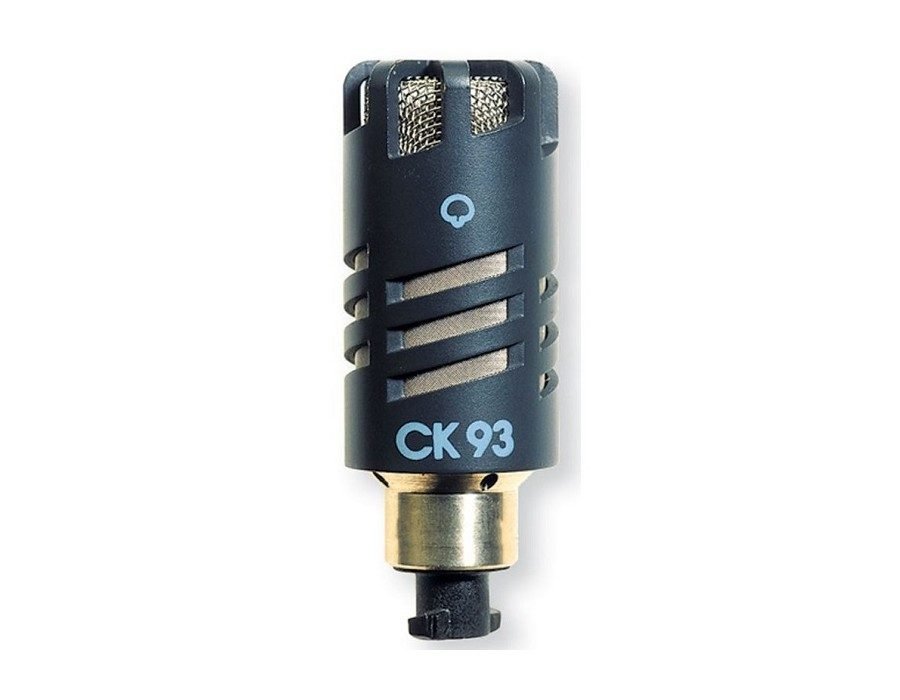

AKG CK93 High performance hypercardioid condenser microphone capsule
The CK93 high-performance small condenser capsule is characterized by a smooth and well-balanced frequency response and a consistent hypercardioid polar pattern. It provides greater attenuation of off-axis sound and more direct sound. Thus it is the ideal choice for critical live and studio broadcast applications where consistent suppression of off-axis sound is required. The CK93 is part of the Blue Line Series and works exclusively with the SE300 B pre-amp module. Its robust Modulock bayonet coupling allows quick and easy changing of the capsules modules.
General Specifications
- Audio frequency bandwidth20 – 20000 Hz
- Equivalent noise level17 dB-A
- Sensitivity10 mV/Pa
- Signal to Noise77 dB-A
- Electrical impedance200 Ohms
- Recommended load impedance1000 Ohms
- Polar PatternHypercardioid
Powering Interface
- Voltage9 to 52 V
- Current2 mA
- Dimensions
- Height51 mm
- Diameter19 mm
