Allen & Heath AHM-16
Allen & Heath AHM-16, 16×16 Audio Matrix Processor
With an unrivalled price-performance ratio, AHM-16 delivers a 16×16 matrix with uncompromised processing for single room applications and smaller multi-room environments including bars, restaurants, shops and school halls.
16×16 Processing Matrix
Flexible routing with configurable processing on all 16 outputs.
8×8 Local Analogue I/O

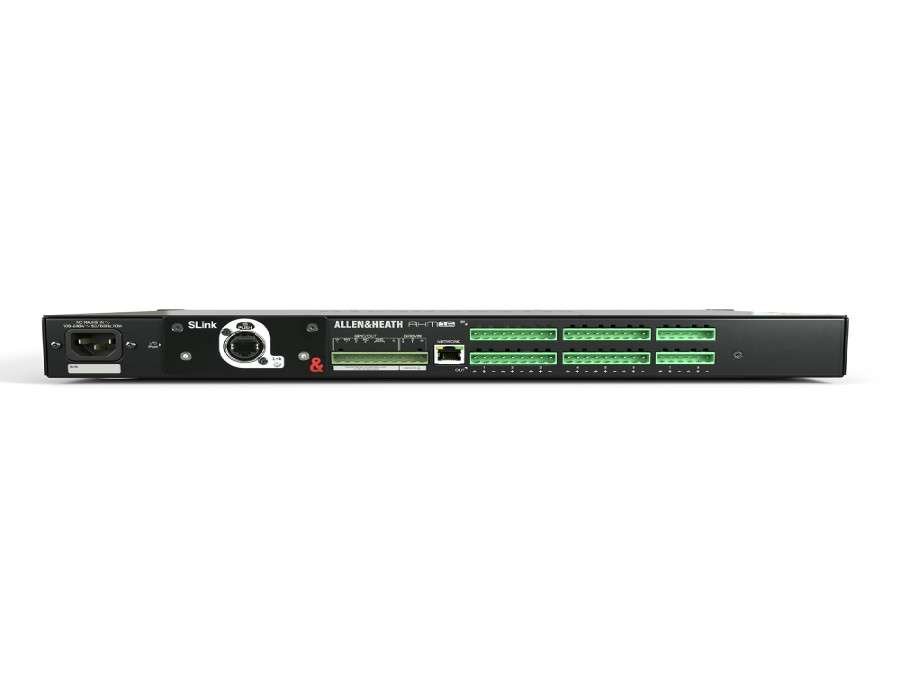

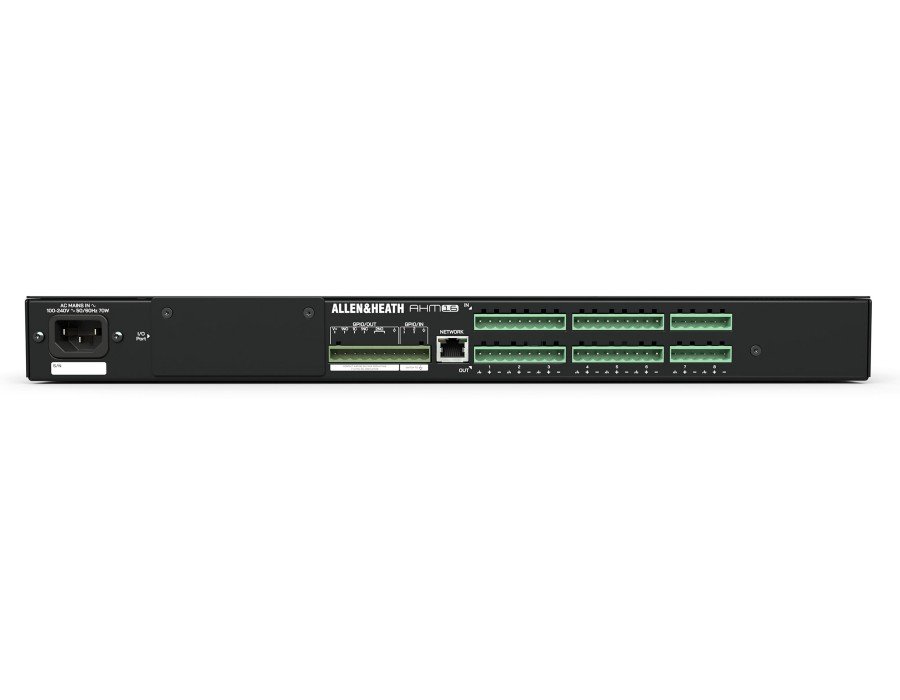

8x mic/line inputs and 8x relay protected line outputs on Phoenix connectors.
Audio Networking I/O Port
Card options include Dante, MADI, Waves and SLink.
Processing
Sound Management Tools
• Automatic Mic Mixer
• ANC (Ambient Noise Compensation)
• Priority Ducking
• 8-band PEQ, dynamics and delay on every input and zone
• Speaker processing with x-over filter, delay, limiter, PEQ and All-Pass Filters
• NTP support
• EQ Ganging (Relative, Absolute, and Mirrored Controls)
Hardware
Always In Control

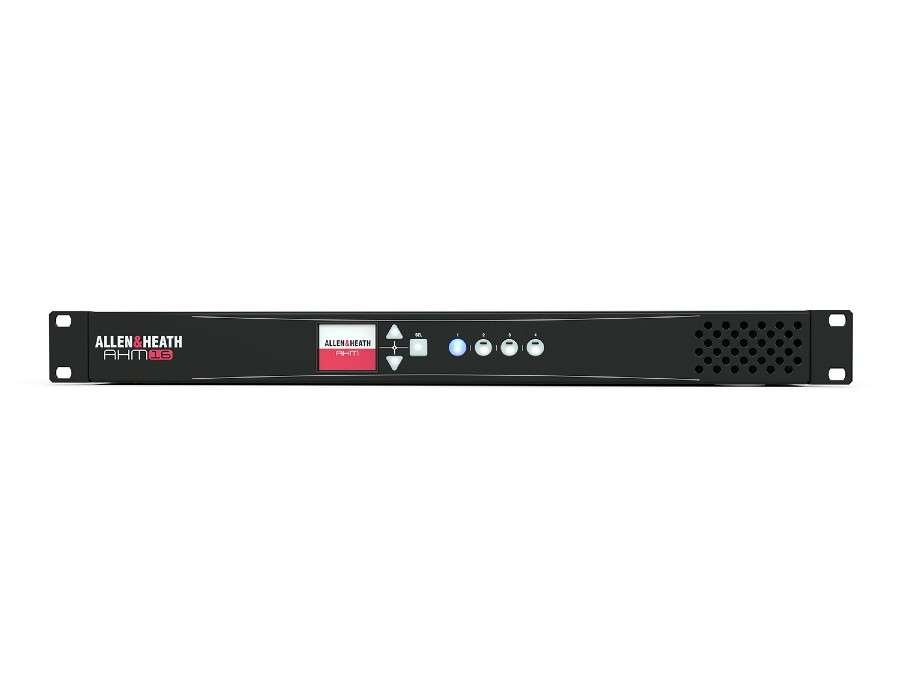

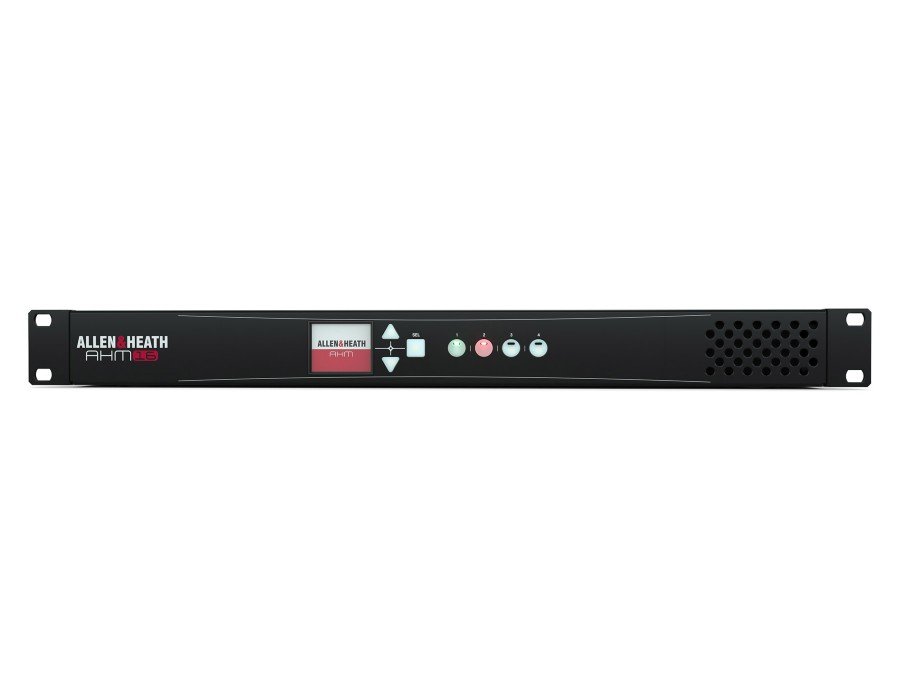

In addition to remote controllers, GPIO and 3rd party integration, AHM-16 has a front panel screen and 4x programmable SoftKeys for intuitive volume control, source select, preset recall and more.
Features
- 16×16 processing matrix
- 8×8 local analogue I/O
- /O Port for audio networking, up to 128×128
- Dante 96kHz option card (AES67 and DDM ready)
- SLink 128×128 option card for audio expansion
- 16 configurable processing outputs – mono / stereo zones or speaker processing
- 96kHz FPGA core with ultra-low latency
- Front panel screen and navigation
- 4x SoftKeys
- Compatible with IP1, IP6, IP8 remote controllers
- 2×2 local GPIO plus networkable GPIO interface
- TCP/IP protocol for third party integration
- Crestron, AMX and Extron drivers
- Mac / Windows System Manager software
- Custom Control app and editor for BYOD
- 4 user profiles
- Integrated stereo playback
- Event scheduler
