Allen & Heath dLive CDM32 MixRack

Allen & Heath dLive CDM32 MixRack

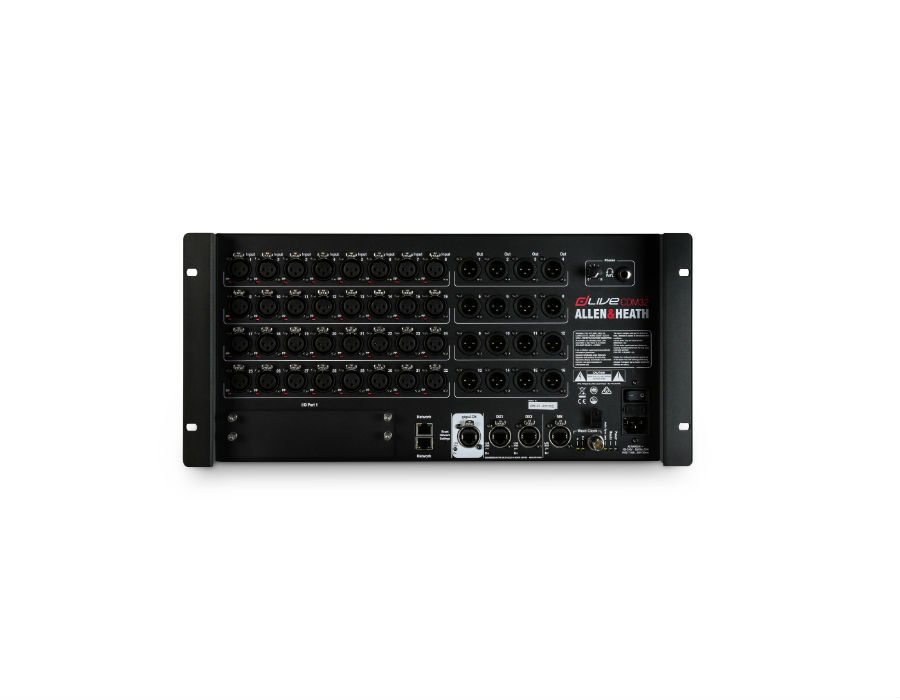

The MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O, control and audio networking ports. It is typically connected to a dLive Surface, but can also be controlled at the same time as or even without a Surface using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP.

There are different sizes of dLive MixRack available. All feature the same mix engine and can work with the full 128 channels by adding DX expanders or digital sources.

XCVI Core

The power of dLive emanates from the XCVI Core – pioneered by the Allen & Heath R&D team using next generation FPGA technology, with 36 parallel virtual processing cores generating enough power for 160×64 channels of processing at 96kHz sampling rate. Six parallel mixing engines within the Core calculate over 10,000 cross points per sample, while the FPGA router has capacity for 3,000 x 3,000 audio paths. The massive power of XCVI (25 billion operations per second) allows dLive to deliver 128 full processing inputs and 16 stereo FX returns, a configurable 64 bus architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96bit accumulator, and class leading latency at an ultra-low 0.7ms

EEP Processing

Our DEEP processing architecture embeds class-leading compressors and processing emulations directly within dLive’s input and mix channels. An array of bespoke algorithms including Graphic EQs, Compressors and a 64 channel Automatic Mic Mixer (AMM) can be inserted on the fly without burning FX slots and without the setup, latency and licence hassles associated with external plug-ins – they’re right there, where you need them, whenever you need them. The compressor models capture the audio nuances and non-linear ballistics of industry classics, ranging from a Slow-Opto model, various RMS detection and soft knee circuits, through to super-fast peak and RMS based compression/limiting devices.

RackExtra FX

The RackExtra FX portfolio combines the pristine quality and wide choice offered by boutique plug-ins with the convenience and low latency of onboard processing. It’s no secret that we have a passion bordering on obsession for crafting painstakingly faithful emulations of the most revered analogue outboard equipment. Drawing on the power of the XCVI Core, we have built hugely potent DSP kernels within the FPGA, allowing us to integrate our proven library of reverb, delay and modulator algorithms into dLive, with 16 FX slots available, each with a dedicated stereo return.
