Allen & Heath DM0

Allen & Heath DM0

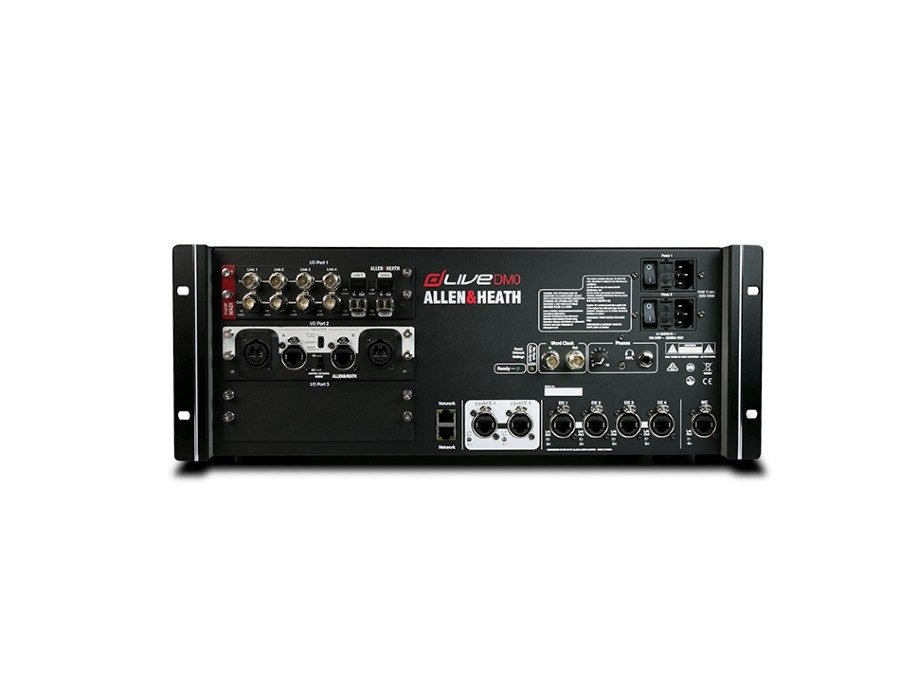

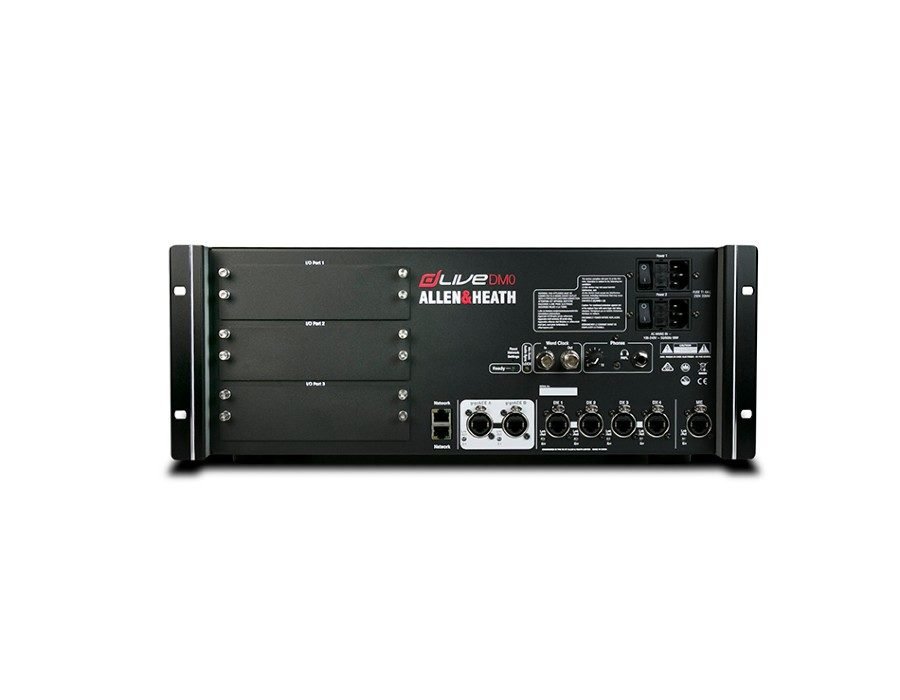

At just 4U, DM0 is the most compact dLive MixRack and is targeted at distributed audio scenarios and digital splits. It houses the XCVI processing core complete with audio I/O, control and audio networking ports. It can be controlled with a dLive Surface, using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP.

All dLive MixRacks feature the same mix engine and can work with the full 128 channels by adding DX expanders or digital sources.

• XCVI 160×64 FPGA core
  • 96kHz sample rate
  • Variable bit-depth for ultimate precision and noise performance
  • Virtually infinite mix headroom thanks to 96bit accumulator
  • Class leading, ultra-low latency at 0.7ms
• 128 Input Channels with full processing
• 64 Mix Outputs with full processing
• Configurable 64 bus architecture (group, FX, aux, matrix, mains)
  • LR, LCR and up to 5.1 mains mode
  • Multiple PFLs
• 16 RackExtra FX with dedicated stereo returns
• 24 DCAs
• AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones

• Built-in signal generator and RTA
• Connection hub
  • gigaACE gigabit link to Surface
  • 2x DX links for I/O expansion
  • I/O Port – 128 ch 96 kHz
  • Dedicated ME-1 48kHz port
  • 2x Network ports
  • Wordclock BNC I/O
• Add up to 46 DX I/O expanders via DX Hub modules or DX Link cards
• Flush front panel with ultra-quiet fan
• Dual redundant power supplies
• Reversible rack ears desig

XCVI Core

The power of dLive emanates from the XCVI Core – pioneered by the Allen & Heath R&D team using next generation FPGA technology, with 36 parallel virtual processing cores generating enough power for 160×64 channels of processing at 96kHz sampling rate. Six parallel mixing engines within the Core calculate over 10,000 cross points per sample, while the FPGA router has capacity for 3,000 x 3,000 audio paths. The massive power of XCVI (25 billion operations per second) allows dLive to deliver 128 full processing inputs and 16 stereo FX returns, a configurable 64 bus architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96bit accumulator, and class-leading latency at an ultra-low 0.7ms
