Allen & Heath DT164W

Allen & Heath DT164W

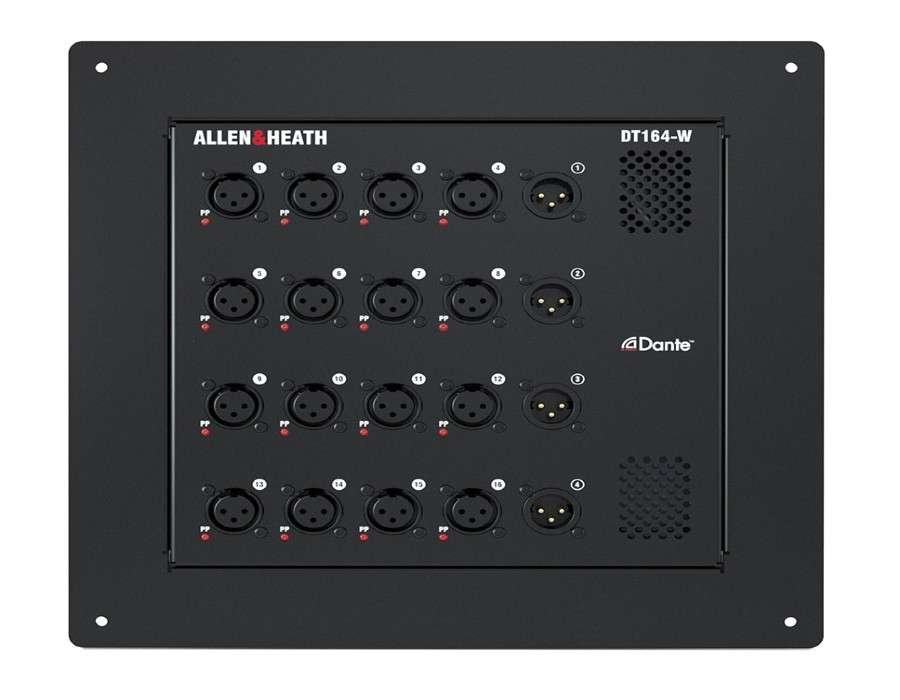

The DT164-W provides 16 microphone preamps and 4 line outputs in a versatile wall-mount design for permanent installation. The reversible mounting frame allows for in-wall or on-wall mounting. With custom brackets, the unit can be fitted in a standard NEMA box, or mounted in a floor pocket for stage use. The IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup input is also provided.

DT164-W offers the acclaimed Allen & Heath preamps, complete with 96kHz converters for best-in-class sound quality over Dante, plus Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors.

Up to 16 units can be added to an AHM-64, SQ, Avantis or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card.

DT Preamp Control software allows remote control of multiple DT expanders, and enables the use of DT expanders with Dante equipped 3^rd party digital mixers and sound management systems.

Features

• Dante audio expander, 96kHz / 48kHz
• Wall mount or dip trap installation
• 16 mic preamps on XLR with Phantom Power status LEDs
• 4 XLR Line Outs
• Primary and Secondary Dante ports with locking EtherCon
• Redundant or Switched mode
• Direct preamp control from dLive, Avantis, AHM-64 and SQ
• Remote control of preamps via DT Preamp Control software for integration with 3rd party systems
• 3 power supply options: 100-230V AC powered on IEC or screw terminal blocks, as well as 12V DC power
• DC power can be used as redundant power supply
• Can fit in a standard NEMA box (custom brackets required)
• Compatible with ACE Backstage 174SLBK stage pocket system
• AES67 compatible
• Dante Domain Manager ready
