Allen & Heath DX168

Allen & Heath DX168

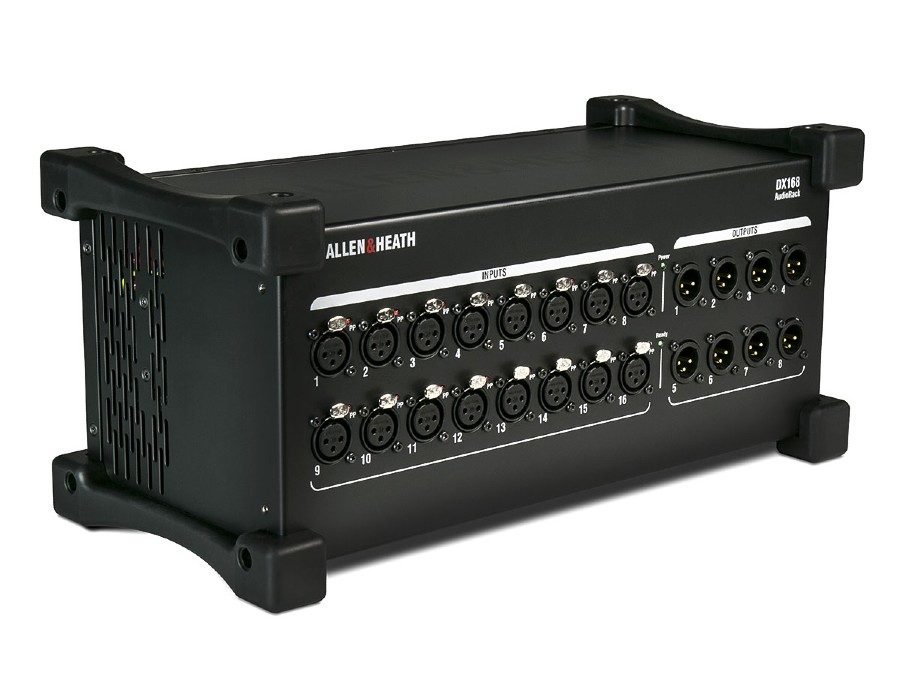

The DX168 is a rugged, portable expander for adding remote I/O to a dLive S Class or dLive C Class system. Each DX168 features 16 mic preamps with independent Phantom Power LED indicators, plus 8 XLR line outs. Up to 6 DX168 units can be connected to a dLive system – 4 via the MixRack and 2 via the Surface – allowing up to 96 remote inputs and 48 remote outputs in addition to those provided by the MixRack and Surface. The DX168 connects via a single Cat5e cable to the dLive Surface, MixRack or upstream DX168 via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX168 for additional remote I/O.

With dLive

Up to 6 DX168 units can be connected directly to a dLive system – 4 via the MixRack and 2 via the Surface – allowing up to 96 remote inputs and 48 remote outputs in addition to those provided by the MixRack and Surface. More units can be connected via the dLive DX Link card or DX Hub.

With Avantis

Two units can be daisy chained and connected directly to an Avantis SLink port. Up to 16 DX168 units can be added to an Avantis system via DX Link card and/or DX Hubs.

With SQ

Two units can be daisy chained and connected directly to an SQ SLink port, with the optional SLink card for SQ enabling more connections. For a more distributed system, a DX Hub can handle up to 8 DX168 units which can be freely patched to the SQ’s 48 input channels.

With AHM-64

Two units can be daisy chained and connected directly to an AHM-64 SLink port. Up to 8 DX168 units can be added to an AHM-64 system via a DX Hub and freely patched to the 64 input channels.
