Allen & Heath M-DL-SMADI-A

Allen & Heath M-DL-SMADI-A

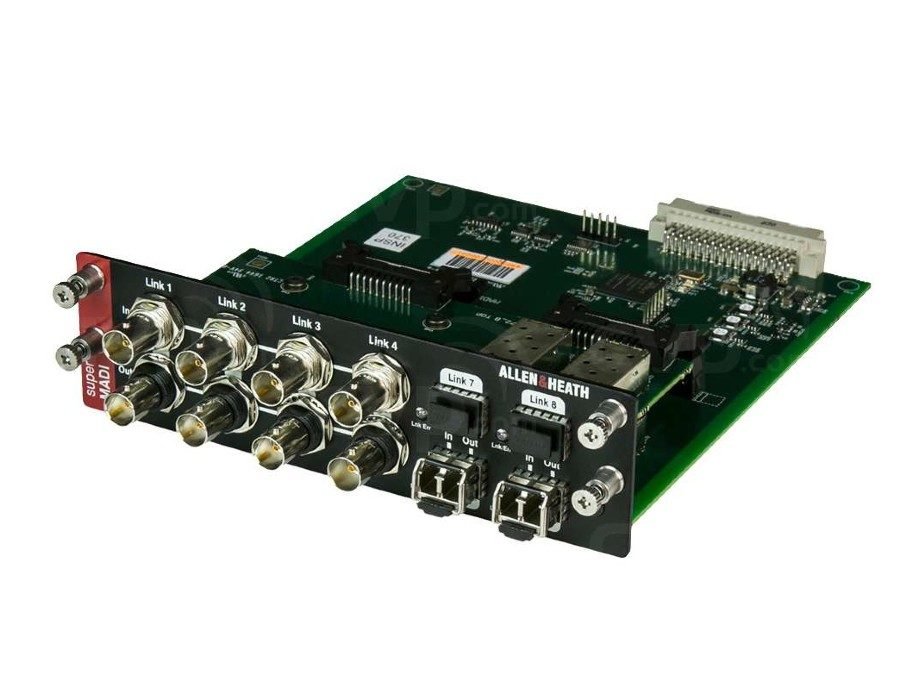

The superMADI audio networking card (M-DL-SMADI-A) is one of a portfolio of audio networking options that can be fitted to any Allen & Heath dLive or Avantis I/O port. Designed to help integrate dLive and Avantis into a wide range of broadcast, live interface and recording scenarios, the superMADI interface card has numerous connectivity possibilities, including 8 BNC connectors and 4 SFP slots for fibre optic transceivers (not included). Both coaxial and optical formats offer up to 128 I/O at 96kHz each, and redundancy and sample rate are switchable per link pair, with a choice of Smux or HighSpeed 96kHz mode. The superMADI card can also be used by engineers and rental companies to link to any MADI-enabled third party console, allowing high-channel count digital splits, for example, between FOH and Monitors.

The superMADI card (M-DL-SMADI-A) is an audio networking option card for the dLive series. The superMADI card provides 128 I/O at 96kHz or 48kHz on BNC connectors or optical (SFP slot). Sample rate and redundancy are switchable per link pair, with a choice of Smux or HighSpeed 96kHz mode. 4 Optical links on SFP slots (modules not supplied) allow the correct module to be chosen for the application. The superMADI card is compatible with the dLive series.

Key Features

128×128 channels at 48kHz and/or
96kHz
• SFP slots for optical
• Sample rate set independently per link
• Standard MADI

Benefits

• 128×128 on BNC and fibre
• BNC and fibre independent routing
• Switchable redundancy
• Multimode or single mode SFP
• Up to 5 cards in a system (with SRC)
