Apart MICPAT-D

Apart MICPAT-D

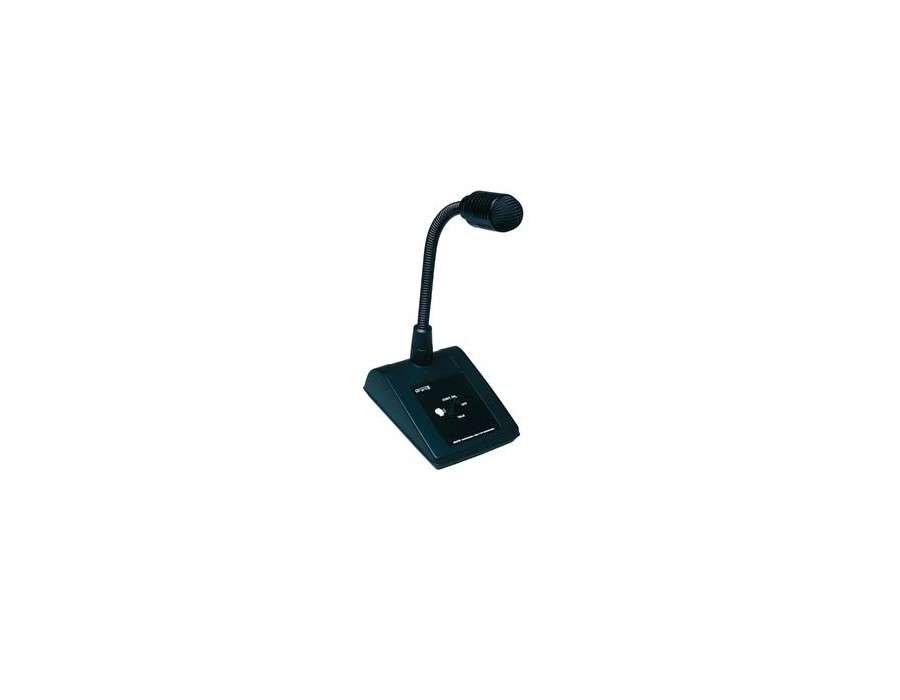

The Apart MICPAT-D is an all call dynamic paging microphone. It has a flexible stem and a high quality unidirectional dynamic microphone capsule. The paging microphone is intended for making calls to all zones. The microphone has a stable aluminium base, equipped with a toggle switch that allows Talk – Off – Continuous talk. MICPAT-D comes with 3m cable and a DIN5 connector.

Features and benefits

• Inconspicuous and elegant design
• Remarkable sound quality
• Flexible microphone stem
• Unidirectional dynamic microphone
• Speech-optimized frequency response
• Push-to-talk / continuous on button
• Balanced output allows long cables
• Easy connection using ` DIN5 connector
• No power supply or phantom power necessary
• Indoor use only

Safety precaution

• Keep this manual for future reference.
• Take care of your connection wires; they should be free of damage. Damaged wires may
result in poor sound quality or malfunctions and can cause damage to the installation.
• Only use accessories specified by the manufacturer
• No mains power shall be connected to the device, doing so will damage the unit.
• This device should only be serviced by qualified personnel. If not serviced by qualified
personnel, warranty may be void.
• Use cables with clear color indication and maintain polarity throughout the whole system.
• Please check the packing for any kind of damage upon reception of the goods. If the packing
is damaged, please contact your dealer before opening it.
• Please note that this unit must be protected from moisture and is meant for indoor use only

Operating instructions

Push the talk button forward for continuous
operation. Pull the switch toward you
for temporary operation. In the forward
(continuous on) position, the switch will
latch. In the “talk” position, the switch
will jump back to the middle (off) position
when it is released.
Talk into the microphone at a distance of
5 to 20 cm, depending on the loudness
of your voice and the gain setting of the
connected preamplifier or mixing amplifier.
