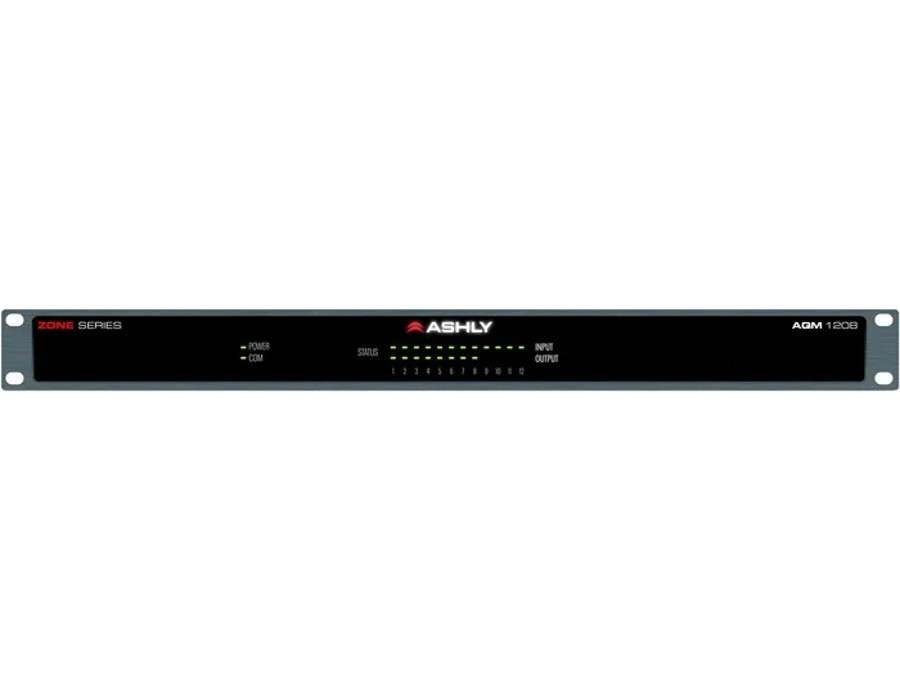

Ashly AQM-1208

Ashly AQM-1208

The AQM1208 is an advanced stand-alone zone mixer designed for external amplification systems, offering substantial power and flexibility. It provides remote access via LAN and the Internet, facilitating convenient configuration and troubleshooting from anywhere worldwide. Based on the AquaControl DSP engine, initially introduced with the mXa1502, the AQM1208 features a comprehensive DSP function library within an intuitive user interface. With a 12 Input by 8 Output configuration, it accommodates various applications, including microphone mixing, music distribution, and noise masking, delivering essential tools for sound optimization and seamless operation.

Ashly AQM-1208 Applications:

Retail

Education

Sports

Restaurants

Hotels

Ashly AQM-1208 Features:

• Ashly AquaControl™ software offers browser-based access without the need for additional apps.
• Remote Ethernet Access from anywhere.
• Flexible IO configuration with 12 Mic/Line Inputs, 4 RCA Line Inputs, and 8 Balanced Line Outputs.
• Comprehensive integration I/O includes Network, GPI (8), GPO (2), and VC (8).
• Scheduler and RTC for automated operations.
• Compact 1U design.
• Extensive DSP functions: Gain, Dynamics, Ducking Matrix, EQ, X-Over, FIR Filters, Delay, Auto-Mixing, and more.
• Event Scheduler for operational management.

Ashly AQM-1208 Specifications:

• Number of Input Channels: 12 (12 Balanced Mic/Line, + 4 Unbalanced Summed RCA Line on 9-12)
• Number of Output Channels: 8 Balanced Line
• Distortion (SMPTE, typical):
• Distortion (THD-N, typical):
• Channel Separation: –75 dB (dB from full output, 1kHz)
• Signal-to-Noise: >110 dB (20 Hz – 20 kHz)
• Frequency Response: 20 Hz – 20 kHz, ±0.05 dB
• Balanced Input Connector: Euroblock 3.5mm
• Input Impedance: 10 k Ohms
• Maximum Input Level: +21 dBu
• Nominal Voltage Input: 100 – 240 VAC
• Operating Range: 70 – 270 VAC
• AC Mains Line Cord Connector: Detachable Nema 5-15 for USA
• Control Network: RJ-45 connector, 1GB Ethernet
• Line Output Connector: Balanced Euroblock 3.5mm
• Line Output Maximum Level: + 21dBu
• Remote DC Level Control: Euroblock 3.5 mm – Gnd, CV, V+ per input
• Unit Dimensions: 19”W x 1.75”H x 14.54”D (483 mm x 45 mm x 369 mm)
• Dimensions: 25.2”W x 2.5”H x 19.5”D / 641 mm x 64 mm x 495 mm
• Weight: 8.8 lbs (4 kg)
