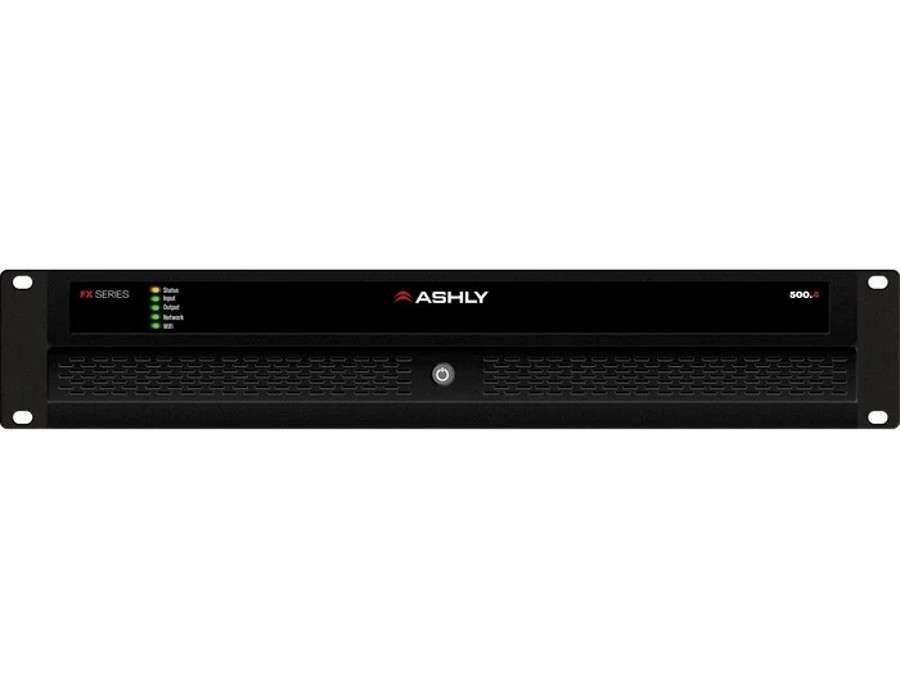

Ashly FX 500.4

The convenience of Wi-Fi and the power of Ashly engineering make the FX series of multi-purpose DSP installation amplifiers the right choice for retail, hospitality, restaurant, and corporate audio processing. Integrated digital signal processing allows the FX500.4 to fit a wide range of applications without requiring additional equipment. Featuring four inputs, four assignable zones, and four outputs with 500W per channel, the FX500.4 provides extreme flexibility to installers. Plus the unit accepts both low and high-impedance inputs with the ability to power low impedance (4 Ohms/8 Ohms) or 70/100V lines. Setup, configuration, and updates can be accomplished from your computer, laptop, or smart device (sold separately) via Ashly’s powerful, intuitive web-based interface. The FX500.4 fits in a standard single rack space and gives you full control over virtually any loudspeaker from the palm of your hand. Make your life easier and your sound better with the FX500.4.

Ashly FX500.4 Applications:

Conference/Huddle Rooms
Classrooms, lectures
Retail
Hospitality
Inside Displays & Kiosks
Bars and Restaurants
Trade Show Exhibits
House of worship

Ashly FX500.4 Includes:

2 x rack ears
4 x adhesive feet

Ashly FX500.4 Features:

500W x 4 channels in a 2 RU chassis
Low (2*/4/8 Ohm) or Hi Impedance (70/100V) operation, selectable in software
Balanced Mic/Line inputs on removeable Euroblock connectors, plus unbalanced RCA inputs
2-channel SPDIF Digital IO
Front panel status LEDs for amp, Input, output & network
Advanced Dynamic Power Sharing distributes power between channels
Networkable via Ethernet or built-in WiFi
Built-in advanced DSP on all inputs & outputs, including: Sensitivity, Routing, Gain, PEQ, Compressor, Limiter, FIR Filters, X-Over, Polarity & Delay
Browser-based UI accessed via PC or mobile device. No software to install.
4 Input channels
Customized Speaker Presets made be created, saved & loaded for each output channel
½ RU models easy to hide in “non-rack” installations
*FX 500 models only
** 4x power is for FX 60.4 only. Other models are up to 2 x power between pairs. Spec is total power with a single channel driven

Ashly FX500.4 Specifications:

Output Channels: 4 Low-Z or 2 Hi-Z
Output power @ 2Ω: 4 x 500W (SE)
Output power @ 4Ω: 4 x 500W (SE), 2 x 1000W (BTL)**
Output power @ 8Ω: 4 x 250W (SE), 2 x 500W (BTL)
Output power @ 25V†: 4 x 320W (SE)†
Output Power @ 70V: 2 x 1000W (BTL)
Output Power @ 100V: 2 x 1000W (BTL)
Total System Power: 2000W
Power Consumption: 1100W
Thermal Output (BTU/hr, 1/8th Full Power, 2Ω Load): 436
Output Voltage: 65Vp/130Vpp (SE unloaded) 130Vp/260Vpp (BTL unloaded)
Weight: 7.4 kg (16.3 lbs)
Dimensions: 88 x 440 x 332 mm (3.5 x 17.3 x 13.1 in)
Output Circuitry: Class D – full bandwidth PWM modulator with ultra-low distortion
Output Voltage: 70 Vp / 140 Vpp (unloaded) / Bridged 140 Vp / 280 Vpp (unloaded)
Signal To Noise-Ratio: > 108 dB (A-weighted 20 Hz – 20 kHz 8 Ω load)
THD+N (typical): < 0.05 % (20 Hz – 20 kHz 8 Ω load 3dB below rated power)
Frequency Response: 20 Hz – 20 kHz (+0/-0.5 dB (8 Ω load 3dB below rated power)
Protection Circuits: Short Circuit, Output DC, Undervoltage, Temperature, Overload protection
Power Supply: Universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter
Operating Voltage: Universal Mains, 100-240V, 50Hz-60Hz
Standby Consumption: < 0.5W
Accessories: 2x rack ears, 4x adhesive feet (included), WR-1 & WR-1.1 GPIO Remote Volume Control (sold separately)
Power Ratings: 1% THD @ 120VAC and 230VAC
*SE – conventional, Single Ended output mode. **BTL – Bridge-Tied Load output mode.
†For 25V output, set DSP output limiter threshold at 25V using RMS voltage setting.
