Ashly FX 60.4

Ashly FX 60.4

The convenience of Wi-Fi and the power of Ashly engineering make the FX series of multi-purpose DSP installation amplifiers the right choice for retail, hospitality, restaurant, and corporate audio processing. Integrated digital signal processing allows the FX60.4 to fit a wide range of applications without requiring additional equipment. Featuring four inputs, four assignable zones, and four outputs with 60W per channel, the FX60.4 provides extreme flexibility to installers. Plus the unit accepts both low and high-impedance inputs with the ability to power low impedance (4 Ohms/8 Ohms) or 70/100V lines. Setup, configuration, and updates can be accomplished from your computer, laptop, or smart device (sold separately) via Ashly’s powerful, intuitive web-based interface. Small but powerful, the FX60.4 fits in a standard half-rack space and gives you full control over virtually any loudspeaker from the palm of your hand. Make your life easier and your sound better with the FX60.4.

Ashly FX60.4 Applications:

• Conference/Huddle Rooms
• Classrooms, lectures
• Retail
• Hospitality
• Inside Displays & Kiosks
• Bars and Restaurants
• Trade Show Exhibits
• House of worship

Ashly FX60.4 Features:

• 60W x 4 channels in ½ RU chassis
• Low (2*/4/8 Ohm) or Hi Impedance (70/100V) operation, selectable in software
• Balanced Mic/Line inputs on removeable Euroblock connectors, plus unbalanced RCA inputs
• 2-channel SPDIF Digital IO

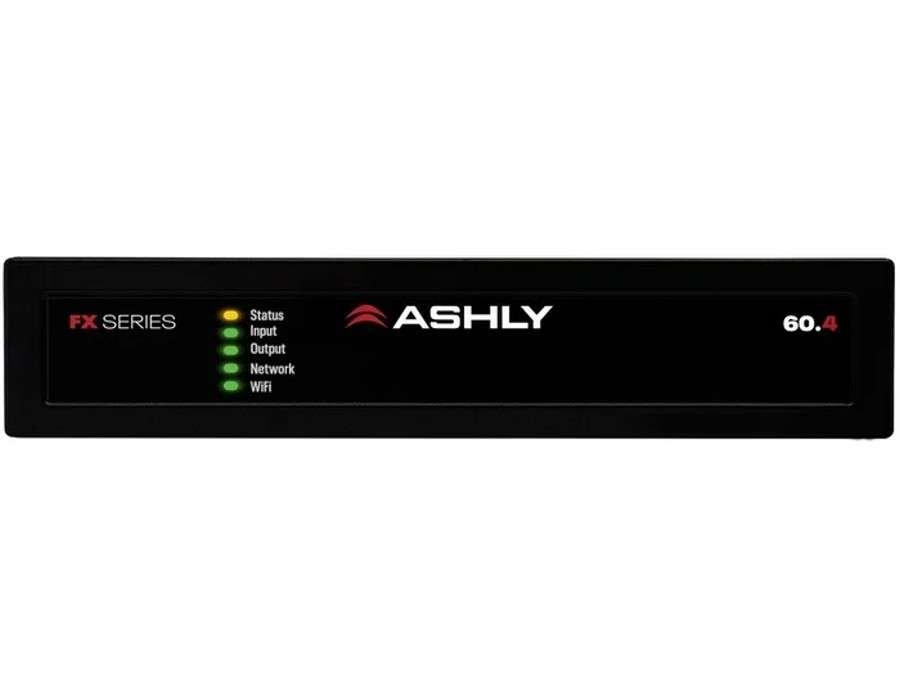

• Front panel status LEDs for amp, Input, output & network
• Advanced Dynamic Power Sharing distributes power between channels
• Networkable via Ethernet or built-in WiFi
• Built-in advanced DSP on all inputs & outputs, including: Sensitivity, Routing, Gain, PEQ, Compressor, Limiter, FIR Filters, X-Over, Polarity & Delay
• Browser-based UI accessed via PC or mobile device. No software to install.
• 4 Input channels
• Customized Speaker Presets made be created, saved & loaded for each output channel
• ½ RU models easy to hide in “non-rack” installations
• *FX 500 models only
• ** 4x power is for FX 60.4 only. Other models are up to 2 x power between pairs. Spec is total power with a single channel driven
