Ashly FX125.4

Ashly FX125.4

The convenience of Wi-Fi and the power of Ashly engineering make the FX series of multi-purpose DSP installation amplifiers the right choice for retail, hospitality, restaurant, and corporate audio processing. Integrated digital signal processing allows the FX125.4 to fit a wide range of applications without requiring additional equipment. Featuring four inputs, four assignable zones, and four outputs with 125W per channel, the FX125.4 provides extreme flexibility to installers. Plus the unit accepts both low and high-impedance inputs with the ability to power low impedance (4 Ohms/8 Ohms) or 70/100V lines. Setup, configuration, and updates can be accomplished from your computer, laptop, or smart device (sold separately) via Ashly’s powerful, intuitive web-based interface. Small but powerful, the FX125.4 fits in a standard half-rack space and gives you full control over virtually any loudspeaker from the palm of your hand. Make your life easier and your sound better with the FX125.4.

Ashly FX125.4 Applications:

• Conference/Huddle Rooms
• Classrooms, lectures
• Retail
• Hospitality
• Inside Displays & Kiosks
• Bars and Restaurants
• Trade Show Exhibits
• House of worship

Ashly FX125.4 Features:

• 125W x 4 channels in ½ RU chassis
• Low (2*/4/8 Ohm) or Hi Impedance (70/100V) operation, selectable in software
• Balanced Mic/Line inputs on removeable Euroblock connectors, plus unbalanced RCA inputs
• 2-channel SPDIF Digital IO

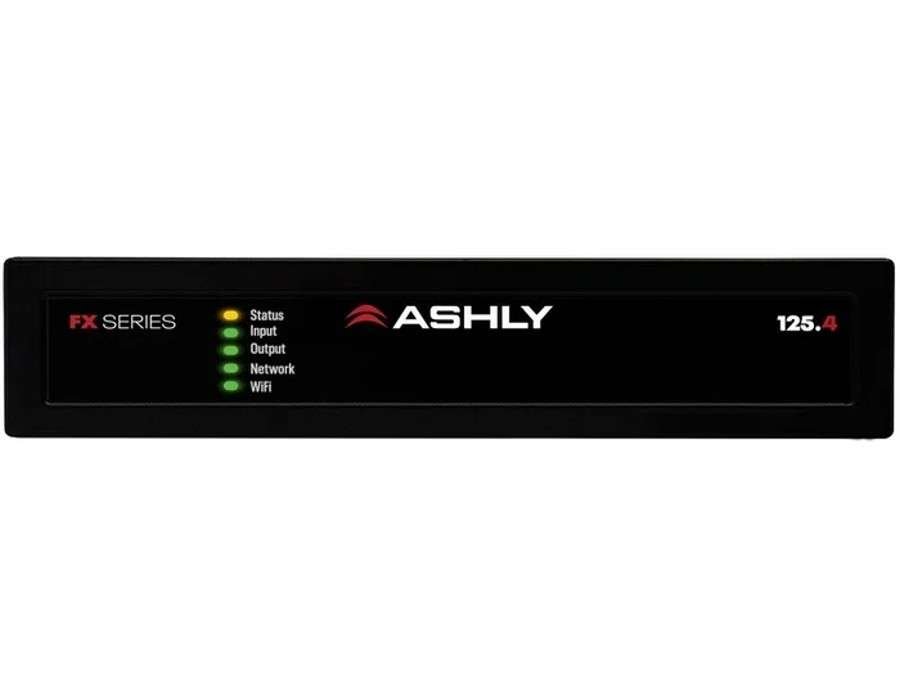

• Front panel status LEDs for amp, Input, output & network
• Advanced Dynamic Power Sharing distributes power between channels
• Networkable via Ethernet or built-in WiFi
• Built-in advanced DSP on all inputs & outputs, including: Sensitivity, Routing, Gain, PEQ, Compressor, Limiter, FIR Filters, X-Over, Polarity & Delay
• Browser-based UI accessed via PC or mobile device. No software to install.
• 4 Input channels
• Customized Speaker Presets made be created, saved & loaded for each output channel
• ½ RU models easy to hide in “non-rack” installations
• *FX 500 models only
• ** 4x power is for FX 60.4 only. Other models are up to 2 x power between pairs. Spec is total power with a single channel driven

Ashly FX125.4 Specifications:

• Outputs: 4 Low-Z or 2 Hi-Z
• Output power @ 4Ω/8Ω/25V†/70V/100V* All channels driven: 125W Low-Z, 250W Hi-Z
• Output power @ 4Ω/8Ω/25V†/70V/100V* Single channel driven: 250W** (156W)†
• Output power @ 16Ω*** Single channel driven: 125W
• Power Consumption: 150W
• Thermal Output (BTU/hr, 1/8th Full Power, 4Ω Load): 152
• Dimensions: 44 x 220 x 319 mm (1.7 x 8.7 x 12.6 in)
• Weight: 2.8 kg (6.2 lbs)
• Output Circuitry: Class D – full bandwidth PWM modulator with ultra-low distortion
• Output Voltage: 70 Vp / 140 Vpp (unloaded) / Bridged 140 Vp / 280 Vpp (unloaded)
• Signal To Noise-Ratio: > 106 dB (A-weighted 20 Hz – 20 kHz 8 Ω load)
• THD+N (typical): < 0.05 % (20 Hz – 20 kHz 8 Ω load 12.5% rated power)
• Frequency Response: 20 Hz – 20 kHz (+0/-0.25 dB (8 Ω load 12.5% rated power)
• Protection Circuits: Short circuit protection. DC protection. under voltage protection. temperature protection. overload protection
• Power Supply: Universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter
• Operating Voltage/Frequency: Universal Mains 100-240V 50-60Hz
• Standby Consumption: < 0.5W
• Accessories: (sold separately) FA1.2RM rack ear, half-rack extension, connection plate; FA2.2RM rear-support kit; FATWB desk/wall mount
• kit, WR-1 & WR-1.1 GPIO Remote Volume Control
• Power Ratings: 1% THD @ 120VAC and 230VAC
• * 100V line mode operates at 90V (≈-1dB)
• ** Power sharing operational (FX60 and FX125 models only)
• *** 16 Ohm power output is limited by the maximum voltage swing available in low impedance mode
• †For 25V applications,maximum power with power sharing is 156W. Output load must be >4Ω
