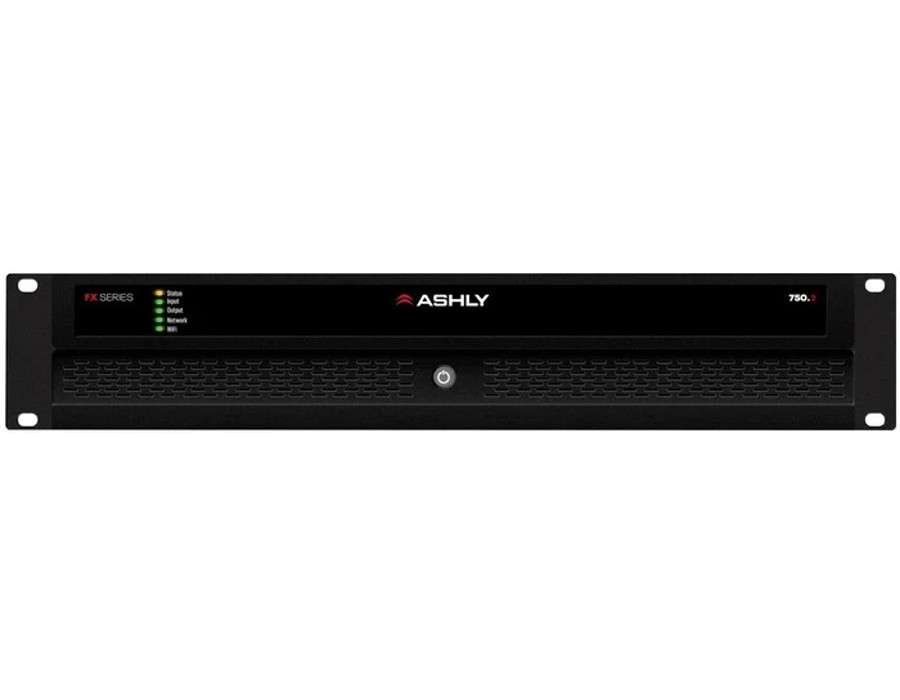

Ashly FX750.2

Ashly FX750.2

Streamline your audio amplifier installation process while optimizing efficiency and cost-effectiveness with the Ashly FX750.2. This multipurpose installation amplifier seamlessly integrates integrated DSP capabilities and a built-in WAP (Wireless Access Point) hotspot. This hotspot facilitates straightforward connectivity and configuration via Wi-Fi, complemented by an intuitive web-based software user interface. Furthermore, the amplifier incorporates an Ethernet connection for wired LAN (Local Area Network) connections, eliminating the need for a network router.

The four-channel Class-D amplifier delivers a robust 750W of power per channel or an impressive 1500W when bridged. Leveraging onboard DSP functionalities, the FX750.2 encompasses the essential components of a standalone speaker processor, encompassing EQ (Equalization), delay, compression, limiting, phase adjustments, and more. This all-in-one solution simplifies setup and navigation. The package includes a pair of rack ears, a power cord, and block connectors for added convenience.

Ashly FX750.2 Features:

• Built-In Wireless-Access-Point (WAP)
• 750 W per Channel or 1500 W Bridged
• 2/4/8 Ohms, 25/70/100 V
• Class-D Circuitry
• RCA and Euroblock Analog Inputs
• S/PDIF RCA I/O + Euroblock Speaker Out
• Euroblock GPIO Connector + Ethernet
• Fan Cooling + Protection Circuitry
• Includes Power Cord and Block Connectors

Ashly FX750.2 Specifications:

• Output Power @ 4ω/8ω: @2ω: 2 x 750 W (SE), @4ω: 2 x 750 W (SE), 1 x 1500 W (BTL), @8ω: 2 x 375 W (SE), 1 x 1500 W (BTL)
• Channels: 2 x Lo-Z / 1 x Hi-Z
• Output Power @ 70 V / 100 V: 1 x 1500 W
• Powershare (Up to): N/A
• Total System Power: 3000 W
• DSP: 4 Input x 2 or 4 Outputs: Input, Zone, Output & Speaker Processing, plus General settings
• Networking: Browser-based UI Software with Ethernet & WiFi connectivity
• Power Consumption: 550 W
• Dimension: 19 x 8.5 x 12.6 in
• Weight: 13.3 lbs
• Output Circuitry: Class D – full bandwidth P WM modulator with ultra-low distortion
• Output Voltage: 80 Vp / 170 Vpp (unloaded) // Bridged 170 Vp / 340 Vpp (unloaded)
• Signal to Noise-Ratio: > 108 dB (A-weighted, 20 Hz – 20 kHz, 8 ω load)
• THD-N (Typical): < 0.05% (20 Hz – 20 kHz, 8 ω load, 3 dB below rated power)
• Frequency Response: 20 Hz – 20 kHz (+/- 0.5 dB, 8 ω load, 3 dB below rated power)
• Protection Circuits: Short circuit , DC , Under voltage , Temperature – and Overload protection
• Power Supply: UREC universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
• Operating Temperature: 32° – 104° F
• Operating Voltage/Frequency: Universal Mains, 100V – 240V, 50Hz – 60Hz
• Standby Consumption: < 0.5 W
• Accessories: Rack Ears (Included)
• Power Ratings: 1 % THD @ 120 Vac and 230 Vac
