Ashly MX-406 6-Channel, Stereo Mic/Line Mixer
Ashly’s four-decade history in the pro audio industry began with custom designed and manufactured mixing consoles, which soon evolved into rack-mount signal processing equipment. In a world of throwaway products make an invest in high performance products that will last you for years to come.
The Ashly MX-406 is a six input audio mixer with line and microphone inputs on each channel. May be used to supplement larger consoles or for use as a stand alone mixer in sound-reinforcement, portable installations and project studios. The MX-406 features six studio grade, low-noise XLR and 1/4″ combination connectors that are capable of microphone and line level signal. Each input features -20, -40 and -60dB input gain control settings.
All mic preamps are capable of supplying +48V phantom power (globally switched) to condenser microphones. The output section features stereo balanced 1/4″ phone line XLR mono connectors. Unbalanced L/R RCA stereo connections are featured for connecting player / recorder devices. 1/4″ TRS Phone inserts are featured on all inputs and enable routing to external signal processors. The front panel features Level, Pan and a 3-band EQ control. Its compact, 2U (two space) rackmount design allows easy storage and transport for mobile use.
The MX-406 is a rack-mountable six-input, stereo mic/line mixer designed to be used in fixed or portable installations.
Each input will accept either microphone or line-level signals. If microphones are used, a -20dB pad switch is available. The microphone input has an ultra low-noise studio-grade mic preamp with up to 60dB of mic preamp gain. A three-position switch allowing you to set input gain for -20, -40 and -60dB is located on the front panel. Each input has bass and treble shelving filters with individual control of each filter. An Aux Send on each input can be internally assigned pre or post level/EQ.

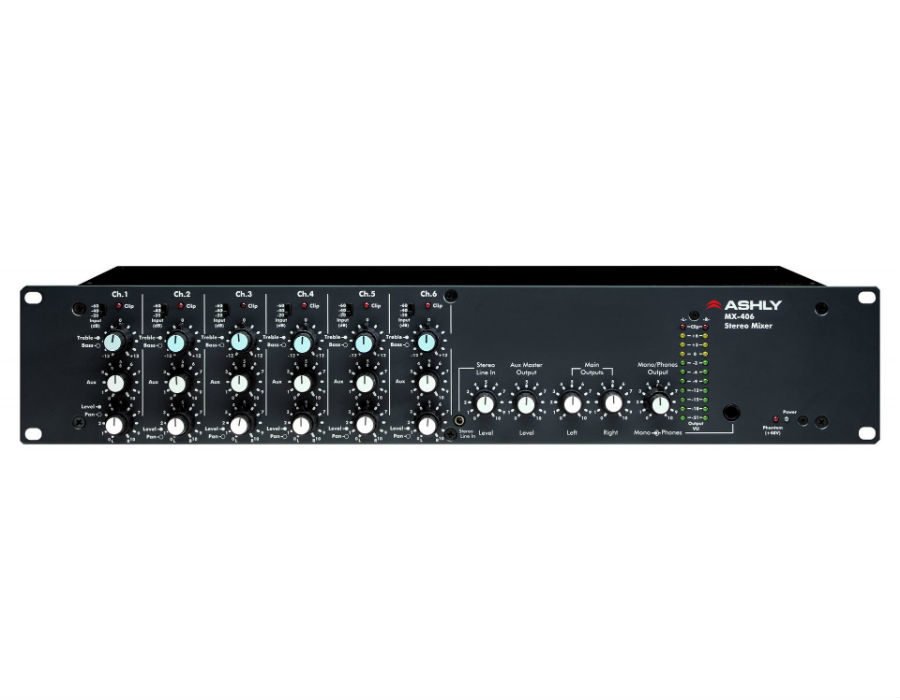

Level and pan controls complete each input. Additional front panel controls include: Aux Master Output, Left/Right Stereo Output, On/Off Power switch and 3.5mm stereo line in jack on the front panel offers a conve- nient input alternative for MP3 players and smartphones. A Mono/Phones output control allows you to adjust the mono output and stereo headphone output. The Stereo headphone output jack is located on the front panel.

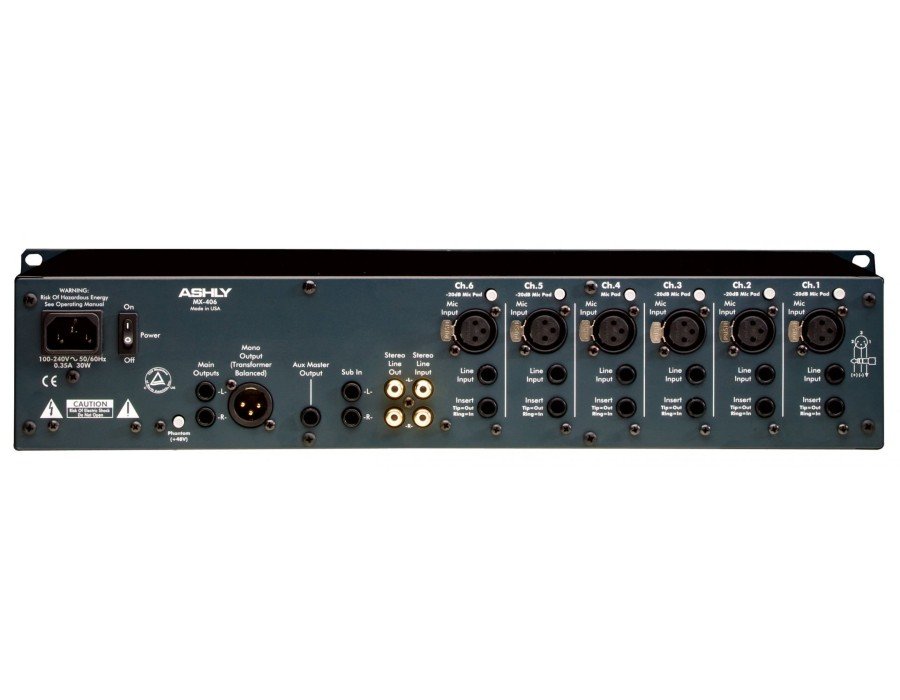

Front panel LED indicators include channel clip, Phantom power, AC power and an 11-step LED output level meter. Connections on the rear panel include 1/4” TRS and XLR jacks for each input, and an XLR transformer balanced mono output. The balanced stereo output jacks are 1/4” TRS. Channel inserts are 1/4” TRS. Left and Right Stereo Line Inputs (return) and Stereo Line Out use RCA jacks. A switch turns +48V Phantom Power on or off. Designed and built in the USA, the MX-406 has an all-steel chassis, contains high-quality components.
