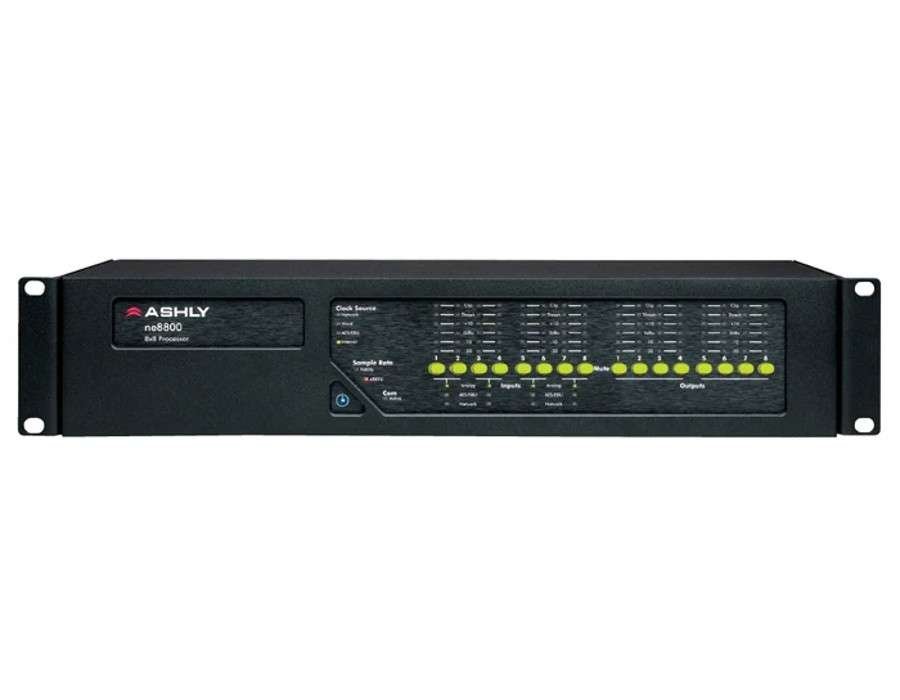

Ashly NE8800S

Ashly NE8800S

Using their widely-popular Protea™ ne24.24M Matrix Processor the ne8800s from Ashley Audio will more than satisfy your requirements for any zoned system. The ne8800s is a DSP Processor with 8-channels of AES3 Outputs only. AES3 outputs, if installed, always carry the exact same audio signals as the line outputs, except in AES3 format.

When your install requires input/output matrixing with signal processing it doesn’t get much easier than programming your channels using Protea™ ne Software on your PC. The ne24.24M uses modular expansion cards to provide up to 24-channels of audio matrixing and processing. The base unit offers a 4-input/4-output configuration. Each input and output expansion card has an individual DSP processor allowing you to expand the total input or output 4 channels of DSP processing at a time. These cards are easily installed in the field without the need to reprogram the device.

Matrixing allows you to route any input to any output and control individual levels once they have been assigned. Fixed path architecture and extensive processing power per channel will reduce the amount of time it takes to set up your system. An optional GPO Logic Card allows the ne24.24M to trigger projection screens, curtains or lights. The logic card is installed in place of a 4-input or 4-output card and occupies one of the four expansion slots.

NOTE: Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.

Applications

• Retail – Background music with paging
• Bar/Restaurant – Background music with paging

Features

• AES3 Input options
• 10/100 Ethernet and RS-232 computer interface standard
• Extensive Protea DSP available
• Easy and intuitive user interface
• 24-Bit A/D–D/A audio resolution, 32-bit SHARC DSPs, sample rates of 48kHz and 96KHz
• Hot-plug software control
• iPad control via free Ashly Remote app
• Automatic DHCP network IP configuration
• Butterworth, Bessel, Linkwitz-Riley, and Notched-Linkwitz-Riley filters
• FIR filter capability
• Advanced automatic feedback suppression Word Clock input and output
• Euroblock connectors for audio, preset recall, DC remote level control and data in/out
• Remote controls for level, logic I/O and programmable functions
• Third-party control friendly, input and output
