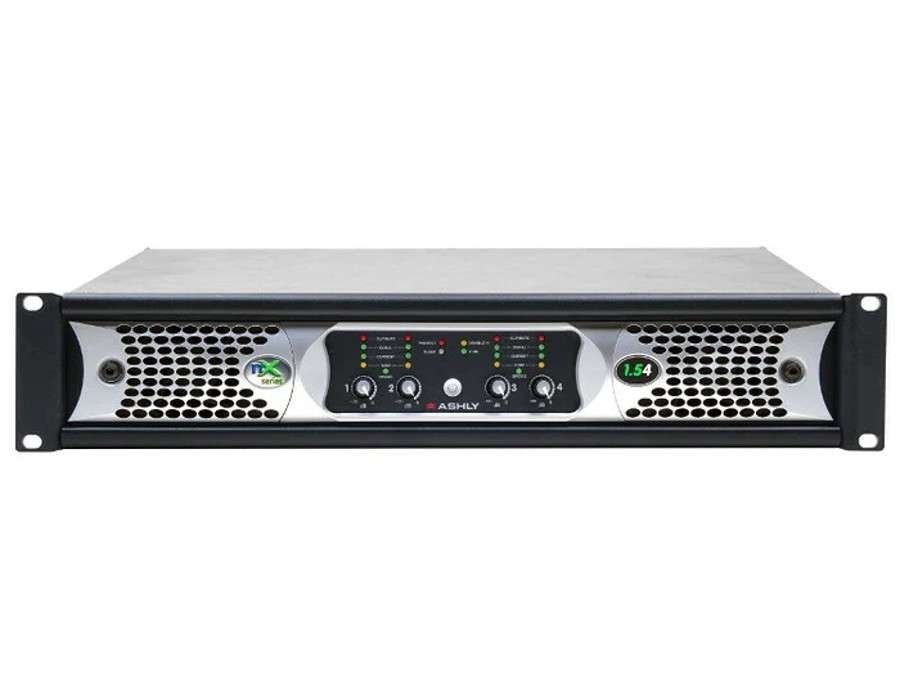

Ashly nX1.54

Ashly nX1.54

The Ashly line of nX Power Amplifiers features lightweight, energy efficient Class D switching amplifier technology combined with a switch mode power supply. The nX amplifiers are available in three product families designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces and convention centers.

The nX Series is Ashly’s base level amplifier, available in either 2 or 4-channel models. Use rear panel DIP switches to program each channel output for either High-Z (70V or 100V Constant Voltage) or Low-Z (stable down to 2 Ohms) operation. When in Sleep Mode, the nX amplifiers draw less than 1 Watt.

Ashly nX1.54 Features:

• 4-channel high-output, lightweight amplifiers with programmable output on each channel (Hi-Z or Lo-Z, selected via rear panel DIP switches)
• Power-saving, Energy Management System (Ashly EMS) automatic
• Front panel power switch and level controls (can be disabled for security)
• Front panel LEDs for temperature, current, signal, clip, mute, bridge mode, protect, sleep, and disable (of front panel controls)
• Neutrik® Combo XLR–1/4” TRS jack plus Euroblock input connectors
• Neutrik® speakON® twist locking loudspeaker connectors for security, safety, and reliability
• Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration
• Remote DC level control on each input channel
• Neutrik® powerCON® detachable AC mains connector
• Switch mode power supply automatically detects 120V or 240V AC operation
• Extensive protection circuitry, continuously variable cooling fans
• Multiple independent internal power supplies provide increased channel separation and reliability

Ashly nX1.54 Specifications:

• Max Output Power per Channel:
  • 2 Ohms: 1500W
  • 4 Ohms: 1500W
  • 8 Ohms: 1250W
• Low Z Output Bridge Mode:
  • 4 Ohms: 3000W
• 70/100V Output:
  • 70V: 1500W
  • 100V: 1250
• Total Power Draw:
  • Sleep Mode: < 1W
  • Standby Mode: 70W
  • Idle (no signal):10W
• Current Draw 120VAC Mains:
  • Sleep Mode: 0.1A
  • Standby mode: 1.30A
  • Idle (no signal): 1.85A
• Max. Current Draw: 16.0A
• Thermal Dissipation (BTU/hr. all channels driven):
  • Sleep Mode: < 3.4
  • Standby Mode: 238
  • Idle (no signal): 340
  • Typical (1/8 max. power): 1700
