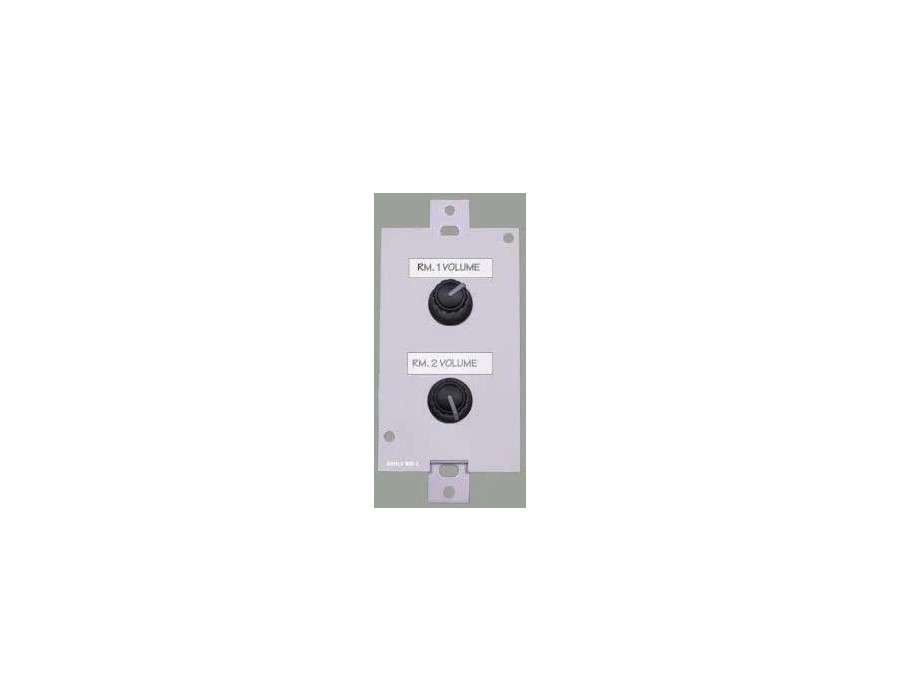

The WR-1 is an assignable, dual potentiometer remote volume control for the 24.24M. Each volume control is connected to a euroblock jack terminal on the WR-1 circuit board, which in turn must be wired to the 24.24M back panel euroblock connector labeled «0 – 5 Volt Remote Level Control».

By connecting a volume control to a specific pin (1-8), that pin can be selected in software under to control the level of any combination of inputs or outputs. It is possible to simultaneously select the same input or output channel to multiple remote level control pins.

The level control is «attenuate only» meaning that the maximum setting of the control potentiometer (fully clockwise) results in 0 dB gain of the controlled channel. Windows are provided for user-generated labels.
