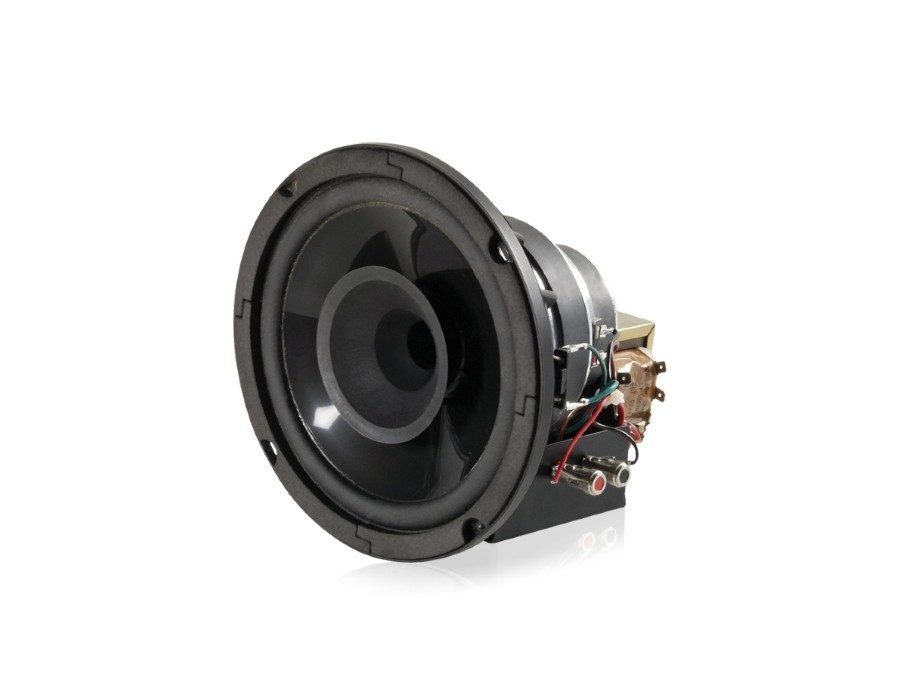

Atlas Sound 8CXT60
Model 8CXT60 is a 150 watt speaker that combines an 8″ diameter, low frequency transducer and a 1″ exit, true compression driver. The unit features a curvilinear, polypropylene cone for lower harmonic distortion, and a built-in crossover network for proper frequency transition between the two reproducers.
Model 8CXT60 operates within a frequency response range of 48Hz – 18kHz with a sensitivity of 92dB and a dispersion angle of 90°.
Model 8CXT60 includes a factory installed, high efficiency, 60W, 70.7/100V step down line transformer. Power taps are provided at 7.5, 15, 30 and 60 Watts (@70.7V).
Note: If speaker is to be used with Q428-SA enclosure, transformer must be relocated from rear of the speaker to the side of the speaker using self tapping screws (sold separately) to secure transformer to speaker basket and allow for speaker to properly fit enclosure.
