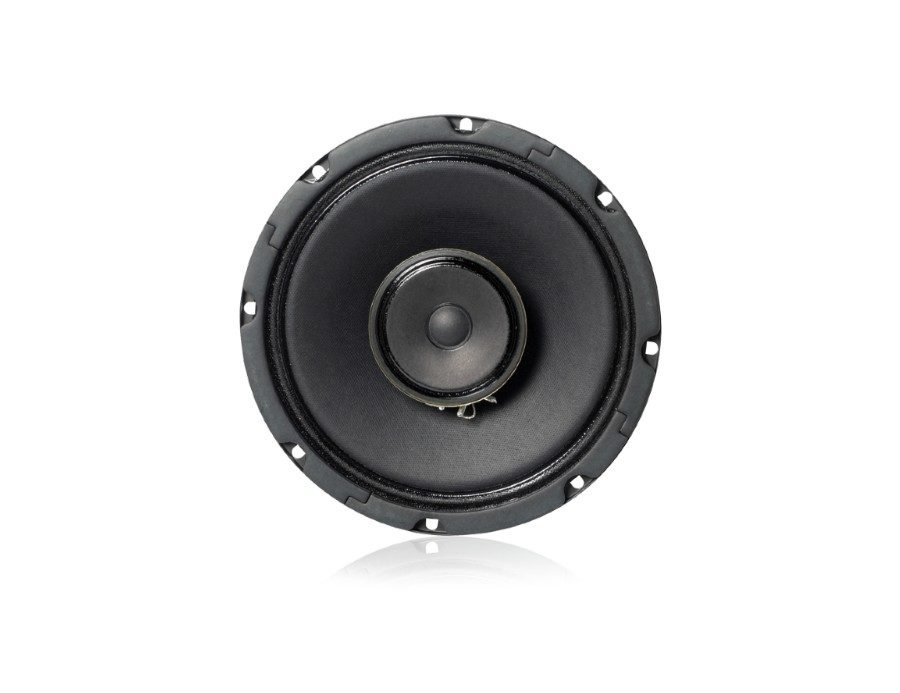

Atlas Sound C803AT72
Model C803AT72, A high-quality 16-watt loud speaker with a factory-installed 25/70.7V 4W line-matching transformer.
Model C803AT72 utilizes a post mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 70Hz – 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.
The C803A combines a full-size 8″ (203mm) diameter low-frequency reproducer and a 3″ (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).
