Atlas Sound FA136T87

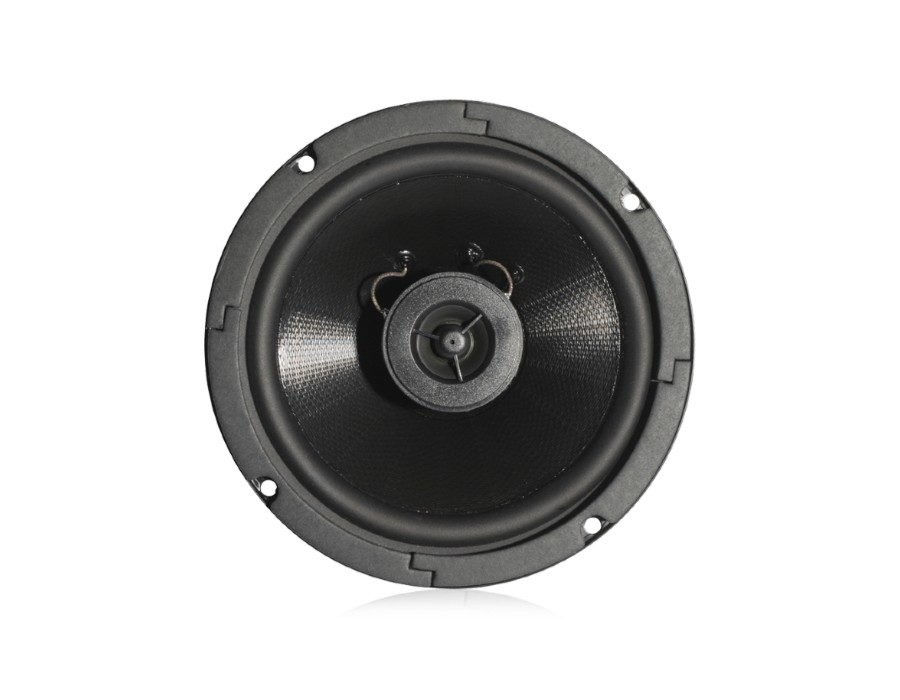

Model FA136T87 (U.S. Patent #5206464) is a high-fidelity, coaxial, 6″ speaker that delivers 50-watts with full frequency response and wide dispersion.
UL listed assemblies are manufactured with high quality materials including reinforced, polypropylene woofer and synthetic rubber surround for high-definition bass, structural integrity, effective damping and weather-resistance.
Each unit includes a post-mounted dome tweeter with a mylar diaphragm and ferrofluid-cooled voice coil for smooth response and excellent power handling capability.
For optimum acoustic and application versatility the Strategy series has been engineered as a system offering both the FA97-6 Series high performance enclosures (.17ft3) with acoustic batting as well as the economy FA95-6 Series (.14ft3) backbox enclosures.The enclosure front-loads the speaker and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps. Speakers may also be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-6 instead of an enclosure.
Baffle selection includes a choice of two attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation into Strategy Series enclosures. For limited depth installations when no enclosure is required mounting ring model FAPR-6 may be utilized. New constuction ring model FA-TR6 is also available to serve as a pattern cut-out and location marker for drywall installers in new construction applications.
