Atlas Sound Z4-B

SISTEMA ACÚSTICO DE ALTA DEFINICIÓN 4 ZONAS

PRESENTACIÓN: PIEZA

Categoría: Etiqueta:


Descripción

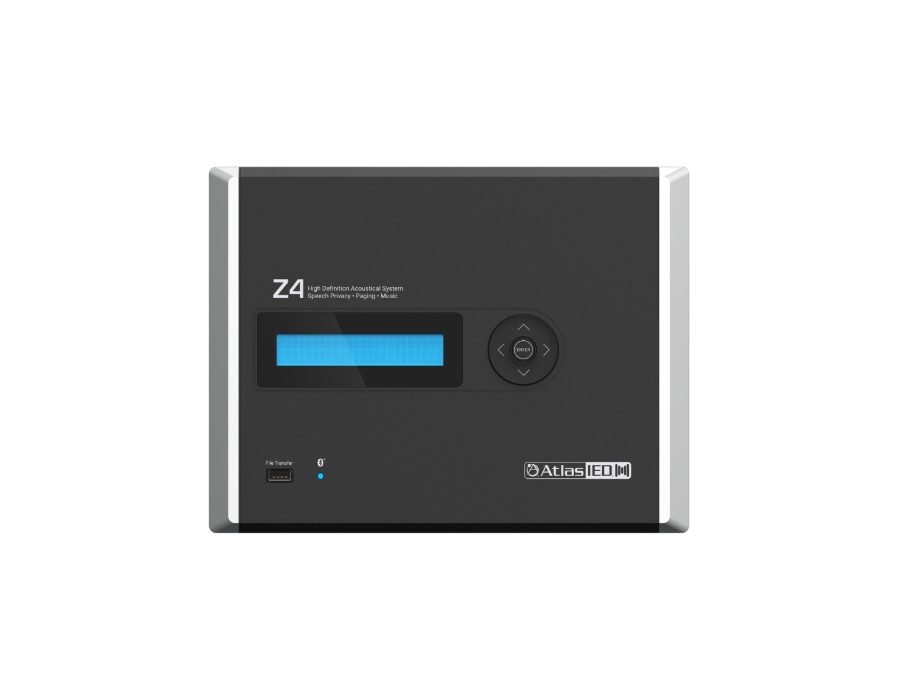

Atlas Sound Z4-B

The Z Series is an all-in-one solution that not only supplies high quality speech privacy, but also delivers high quality background music and paging. The Z Series includes a multitude of features enabling it to conform to most design requirements but remains intuitive enough for simple operation and quick installation.

The Z4-B has a 4-zone, 120-watt, configuration that is ideal for all business types where sound masking and paging /BGM are required. The Z4-B includes 4-zones of 70V output and can operate in multiple configuration modes: four-zone indirect field sound masking (up to 14,000 square feet), two zones of direct fields sound masking, or a combination of indirect sound masking and BGM zones.

The unit can be mounted multiple ways including in-wall, surface mount, or rack mount. Once installed all hardware and wiring is located behind the secure front panel making it convenient for integrators to centrally locate all wiring without the need for a cabinet. The front panel display allows for system programming as well as end user control post installation. The unit comes preconfigured with multiple sound masking filter presets selected by renowned sound masking expert Dr. Bob Chanaud that are user selectable to match the installation type. Custom presets have been configured in the included PC project design software that can also be loaded via the front panel USB port.

For conference room applications where secure speech privacy is required, the Z4-B features a Speech Privacy Enhancement mode that can be engaged while a meeting is in progress. Speech Privacy Enhancement mode applies additional acoustical energ
