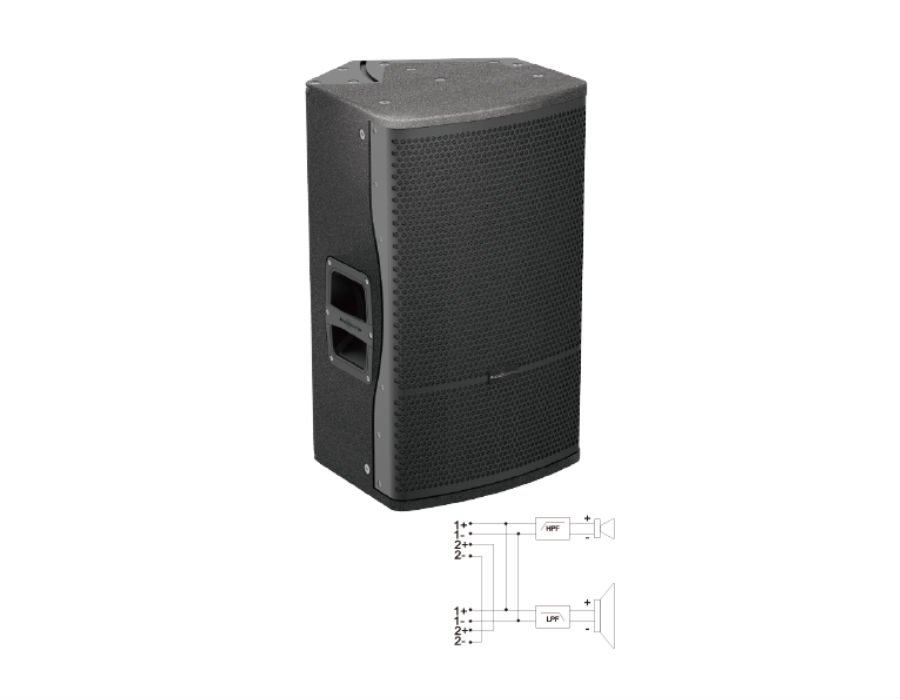

AUDIOCENTER PF15+ MKII90 / PF15+ MKII60

PF15⁺ MKII90 / PF15⁺ MKII60 is a passive crossover full range speaker. It is widely used in fixed installation and touring performance place such as bar, nightclub, multi-functional hall, museum, house of worship, commercial announcements, lecture, wedding, etc.

PF15⁺ MKII90 / PF15⁺ MKII60 adopts customized Beyma HF driver with 2.84”voice coil, composite membrane made of aeronautical material and unique driver protection circuit, and customized Beyma 15”LF driver with 3”voice coil. The vibrating diaphragm adds with special formula material, which increases LF Mechanical control ability. The drivers are with advanced cooling system.

HF horn is made of DMF composite material to ensure very warm and dynamic sound. The waveguide system provides coverage angle and the angle is 90°rotatable. This ensures accurate coverage no matter in vertical or horizontal direction.

15 years experienced Smart crossover technology, American ERSE MET audio capacitor, iron-core inductor, customized metal resistor and manually soldered fiber board ensure stability and consistency and zero consumption, even with very high dynamic sound pressure.

The cabinet is made of CNC made Russian birch plywood, and is tongue and groove assembly. Open-molded customized handle made of aluminum conforms to ergonomics.
