AUDIOCENTER V-HLA15+ MKII

AUDIOCENTER V-HLA15+ MKII

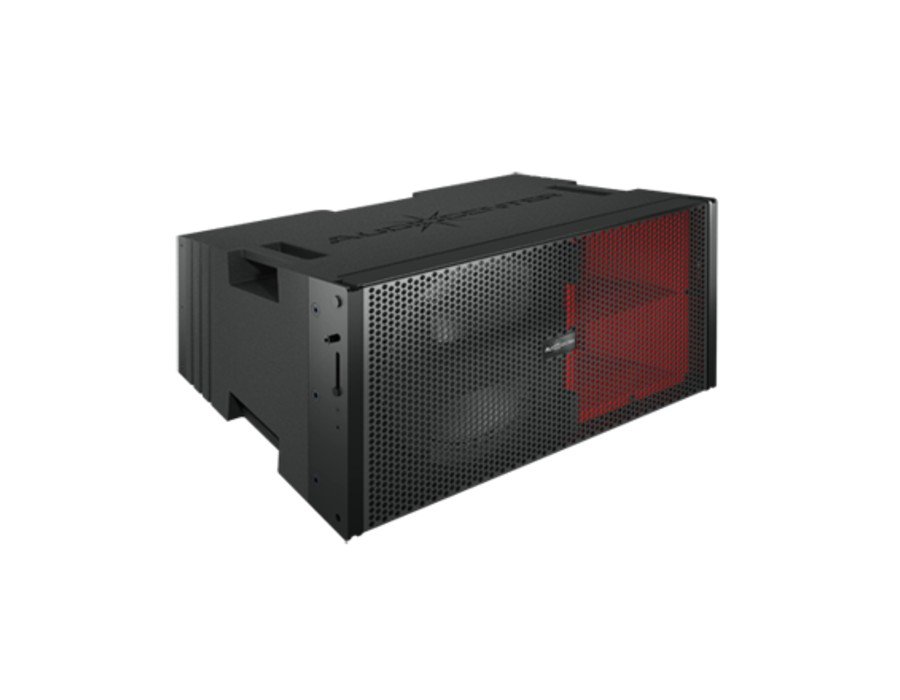

V-HLA15+ MKII, a 2-way active crossover line array speaker, is designed to meet the high demand of touring performance, rental and fixed installation with outstanding clarity.

The LF driver is customized BEYMA neodymium 15” driver with 4” voice coil, and the HF driver is customized BMS coaxial neodymium driver with 1.7” voice coil(HF) and 3.5” voice coil(MF). Innovative T.A.C. wave former technology ensures very good clarity and dynamic effect. The system is with coverage angle (H°×V°) 90°×12°, which makes accurate coverage no matter in vertical or horizontal direction. The OHAC phase technology in LF is to improve the phase response of off-axis, make the MF richer and smooth the join of frequency band. Result is more consistent and much more impressive sound.

The selected neodymium drivers make V-HLA15+ MKII lighter, which is good for easy moving and transportation. Russian birch plywood CNC made cabinets can be used as a matrix of up to 16 speakers.

V-HLA15+ MKII can be installed vertically. The hanging accessories are made of stainless steel and built in the cabinet. There are 9.5mm diameter highly durable pins. The system can be configured in modularization according to the venues. Same frame can be either for flying the arrays or for ground stacking the arrays (We suggest 4 cabinets maximum for ground stacking). To meet different demands, the vertical angle of the frame is 4°/2°/0°/-2°/-4° adjustable.

Together with CA450 touring power supply and patch panel, V-HLA15+ MKII can be used as “plug & play” system to meet the demands from small to large sound system.
