Biamp AMP-4300R CV
Biamp AMP-4300R CV

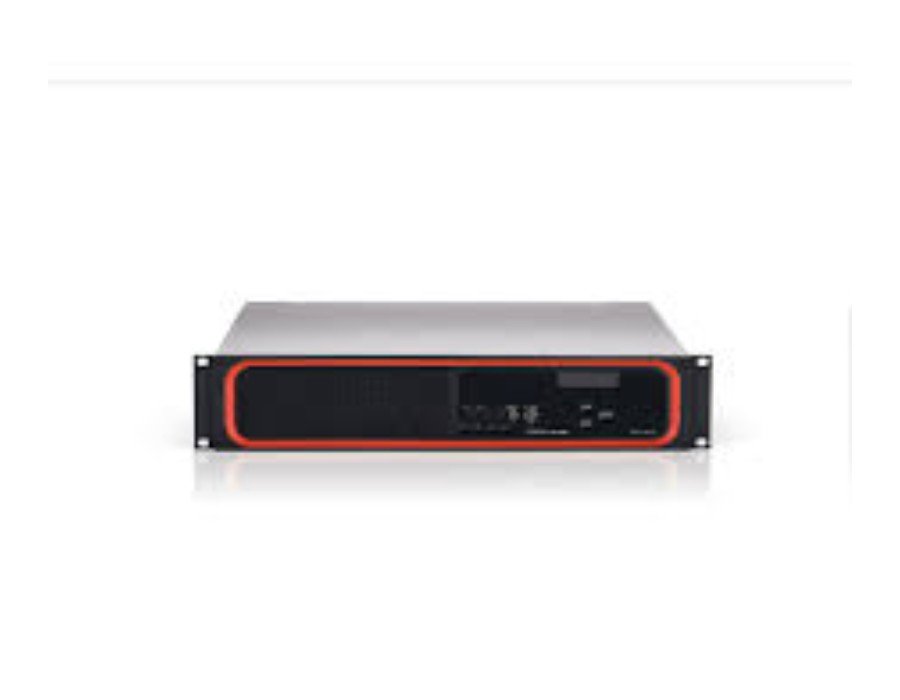

The Tesira® AMP-4300R CV is an AVB/TSN enabled, digital networked, four-channel amplifier delivering 300 watts per channel at 70V/100V. The AMP-4300R CV functions as an integrated part of a Tesira audio system that is configured through the Tesira configuration software. The AMP-4300R CV amplifier serves as a dedicated endpoint making installations easier to design, support and maintain. The front panel OLED display allows for adjustments such as channel mute or all mute and provides feedback on overall status and channel performance. The AMP-4300R CV features impedance monitoring, as well as dual AVB/TSN connections for network redundancy. An optional rear panel input slot can be used for analog failover or as an expander utilizing Tesira EX-MOD cards. The AMP-4300R CV is best suited for training rooms, lecture halls, performing arts, houses of worship or other applications where sound distribution or reinforcement is needed.
- Impedance monitoring
- Configurable via Tesira software
- Dual AVB ports
- Optional analog failover
- Optional I/O expander card slot.
BENEFITS
• Designed for 70V/100V loudspeakers
• Receives an audio signal from anywhere on the Tesira system
• Optional expander slot can be used for analog failover or as an expander
• Optional analog failover allows signal flow even if the the digital audio stream is interrupted
FEATURES
• Four channels; 300W per channel, constant voltage
• Impedance monitoring
• Dual AVB ports
• Optional I/O expander card slot
• Optional analog failover
• Front panel OLED display with capacitive touch
navigation
• Supports port authentication via IEEE 802.1X
• Configurable via Tesira software
• Front panel control of individual and chassis-wide
mutes/levels
• Rack mountable (2RU)
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty
