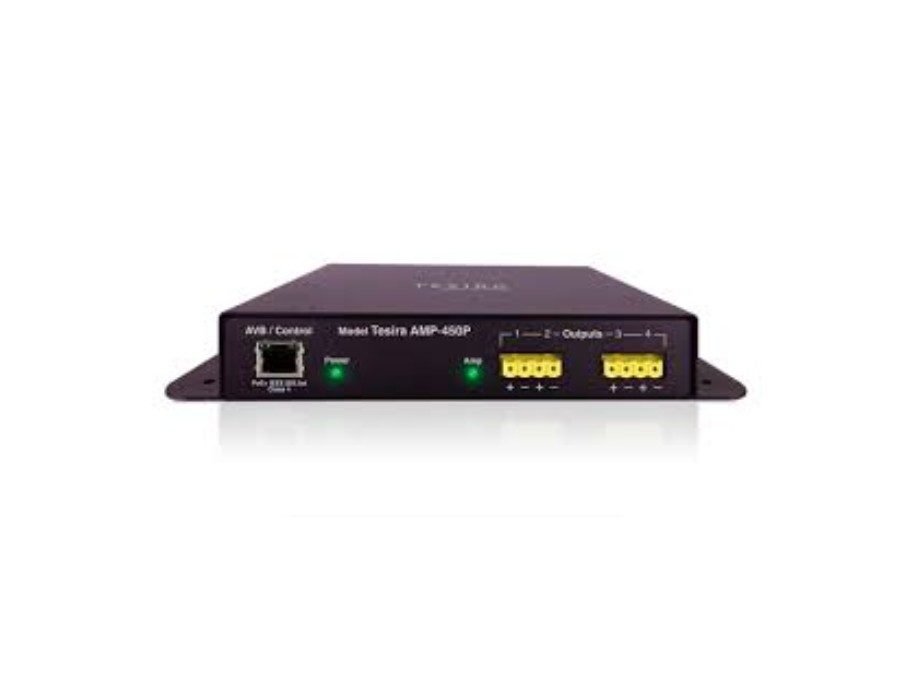

Biamp AMP-450P

The Tesira AMP-450P is a four channel PoE+ conferencing amplifier. The output channels are software configurable, including selectable power versus channel count. The AMP-450P includes an internal limiter, and is capable of providing 3 watts of continuous power to all four channels. The Tesira AMP-450P is also capable of operating in a burst mode to handle peak signals, providing up to 50 watts (4-ohm) or 30 watts (8-ohm) per channel.

Four channels 3W continuous power per channel
Burst mode to handle peak signals; supports up to 50W (4-ohm) or 30W (8-ohm) per channel
PoE+ powered
Class D amplifier topology
Supports delay equalization per channel
Supports port authentication via IEEE 802.1X
Configurable via Tesira software
Rack mountable (2RU)
CE marked, UL listed, and RoHS compliant
Covered by Biamp Systems’ five-year warranty

ARCHITECTS & ENGINEERS SPECIFICATION

The digital amplifier shall be designed exclusively for use with Biamp® Tesira® systems. The digital amplifier shall provide a maximum of 1200 watts of SMPS power. The digital amplifier shall provide four software-configurable output channels on Euroblock connectors. The digital amplifier shall receive control data and digital audio over AVB via one or two RJ-45 connectors. The digital amplifier shall be configurable via Tesira design software, including selection of network topology. The digital amplifier shall support the following network topologies: redundancy, single-cable, daisy chain,and separate control and media signals. The digital amplifier shall support software-electable impedance per channel for 4Ω, 8Ω, 70V, and 100V loudspeakers. The digital amplifier shall be equipped with an audible locate button on the front panel. The digital amplifier shall support delay equalization per channel. The digital amplifier shall support port authentication via IEEE 802.1X. The digital amplifier shall provide remote monitoring information. The digital amplifier shall be rack mountable, requiring two rack units (2U) in height. The digital amplifier shall be CE marked, UL listed and shall be compliant with the RoHS directive. Warranty shall be 5 years. The digital amplifier shall be TesiraXEL™ 1200.1.
