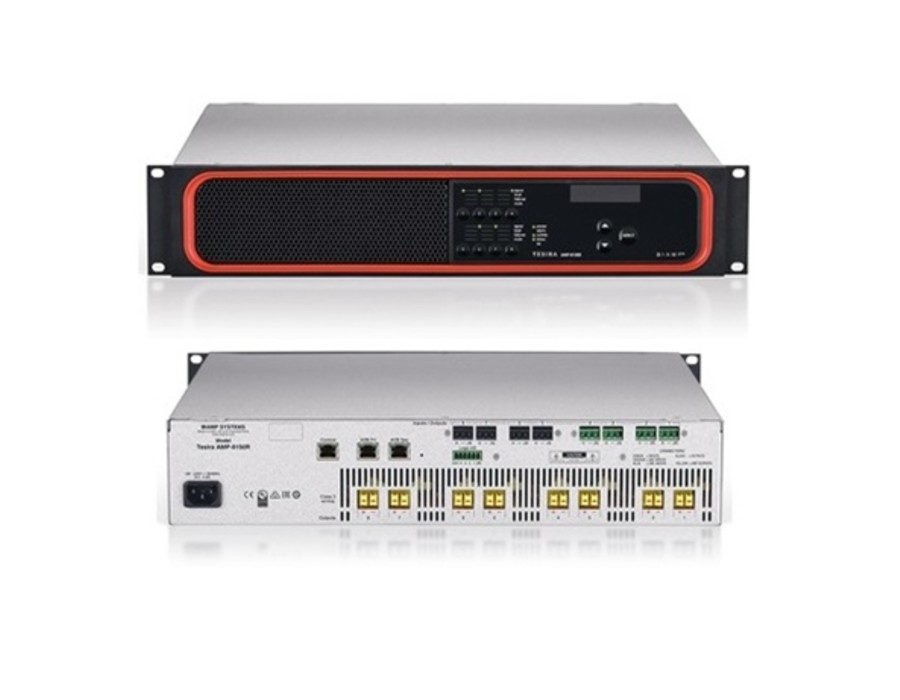

Biamp AMP-8175R

The Tesira AMP-8175R is a digital network eight channel amplifier. It is AVB/TSN enabled and delivers 175 watts per channel. It is rack mountable, and part of an integrated Tesira audio network. It also offers fault reporting, impedance monitoring, and optional analog failover.

Eight channel amplifier; 175W per channel
Impedance monitoring
Configurable via Tesira software
Dual AVB ports
Bridgeable channels
Optional analog failover
Two optional I/O expander card slots

Front panel OLED display with capacitive touch navigation
Front panel control of individual and chassis-wide mutes/levels
Rack mountable (2RU)
CE marked, UL listed, and RoHS compliant
Covered by Biamp Systems’ five-year warranty

The Tesira AMP-8175R is an AVB/TSN enabled, digital networked, eight-channel amplifier delivering 175 watts per channel. The AMP-8175R functions as an integrated part of a Tesira audio system that is configured through the Tesira configuration software.

BENEFITS

• Receives an audio signal from anywhere on the Tesira system
• Optional expander slot can be used for analog failover or as an expander
• Optional analog failover allows signal flow even if the the digital audio stream is interrupted
• Dual ports for network redundancy

ARCHITECTS & ENGINEERS SPECIFICATION

The digital amplifier shall be designed exclusively for use with Tesira®
systems. The digital amplifier shall support AVB digital audio with redundant network connection on RJ-45 connectors. The digital amplifier shall provide 8 output channels rated for 175W each of maximum power into an 8-ohm load. The digital amplifier shall include a slot for installation of 4-channel analog audio card for use as analog failover or as analog inputs and outputs to the Tesira network. The digital amplifier shall be equipped with an RJ-45 Ethernet port for control connection to third party control systems and configuration. The digital amplifier shall support port authentication via IEEE 802.1X. The digital amplifier shall provide front panel LED identification of device power, status, alarm, activity, and system-wide alarms.The digital amplifier shall provide front panel OLED display for device information. The digital amplifier shall provide capacitive touch buttons for the navigation of menus in the OLED display and control of mute states and individual channel levels. The digital amplifier shall provide multicolor LED identification of signal, faults, analog failover, and mute. The digital amplifier shall be rack mountable and provide monitoring information to the DSP system including warnings and faults. The digital amplifier shall be CE marked, UL listed and shall be compliant with the RoHS
