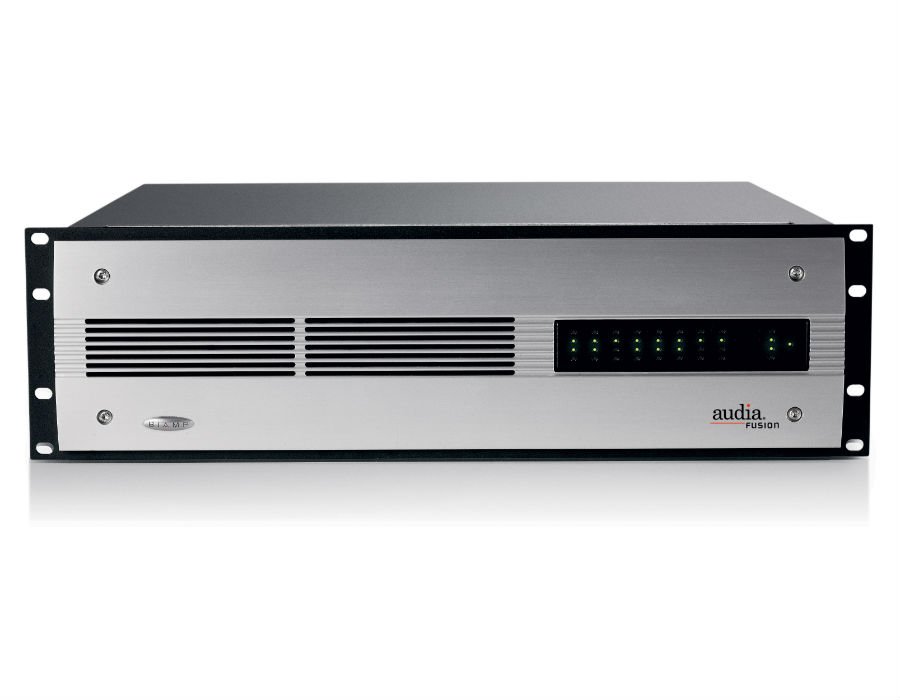

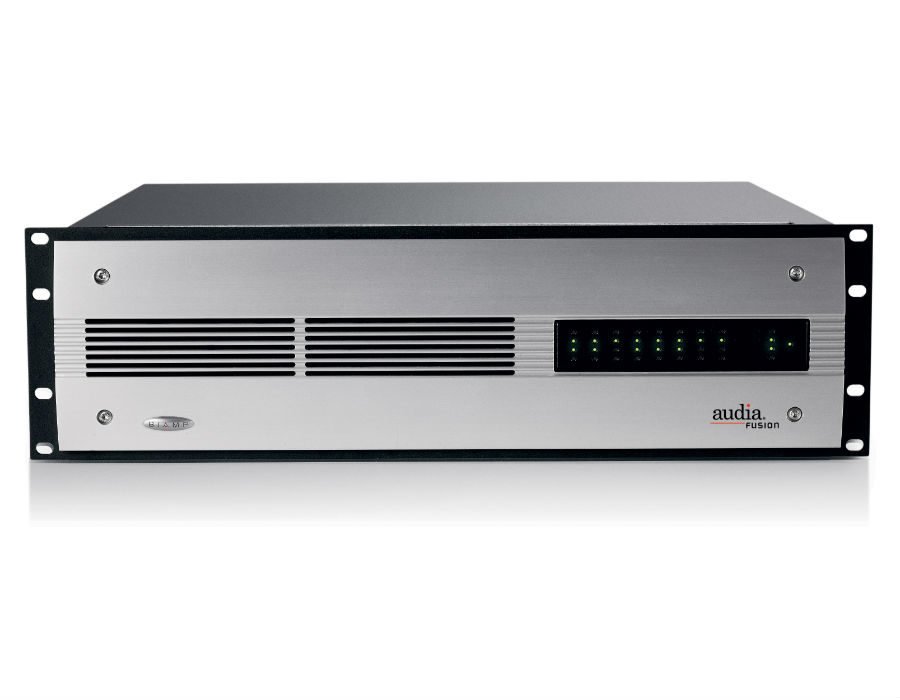

Biamp AudiaFUSION

Biamp AudiaFUSION

AudiaFUSION is a modular networked amplifier capable of supporting up to 8 amplifier cards, each of which are individually software configurable from 100-600 watts for up to 2400 watts of power. AudiaFUSION allows you to configure decentralized systems, placing components close to speakers for reduced labor and material costs. When you install AudiaFUSION in a system with AudiaFLEX, processing resources are shared.

• Amp modules have software configurable power levels/ load options of 100 to 600 watts @ 4 or 8Ω, 70 or 100 volt operation
• CobraNet Interface (16 channels in/16 channels out)
• TCP/IP Network controllable
• LED Indication for signal present, peak present, clip present, heatsink temperature fault, amp failure, fan stuck-rotor
• Internal amplifier module failover mode
• Entire device failover mode
• 2400 watts of power in 3 rack spaces
• Event scheduling.

ARCHITECTS & ENGINEERS SPECIFICATION

The modular networked amplified processor shall be designed exclusively for use with Biamp® Audia® systems. The networked amplified processor shall be modular and support software configurable power levels/load options of 8 amplification modules per frame with 100 to 600 Watts per module (maximum of 2400W per chassis) and 70V or 100V with direct drive capability, or low-impedan ce (4 or 8Ω) operation. The networked amplified processor shall provide control data and digital audio over CobraNet®. The networked amplified processor shall provide dual CobraNet ports for redundant network connection. The networked amplified processor shall provide front-panel LED identification of amplifier and card failure, signal present, clip present, fan stuck-rotor fault, heatsink temperature fault, and provide additional software monitoring features including short circuit on output fault. The networked amplified processor shall be rack mountable (3RU) and feature software-configurable signal processing including volume control, filters, compressor/limiting, delay, speaker equalization, and output sensitivity. The networked amplified processor shall support channel-to-channel and chassis-to-chassis failover. The networked amplified processor shall be CE marked, UL listed and shall be compliant with the RoHS directive. Warranty shall be five years. The networked amplified processor shall be an AudiaFUSION.
