Biamp Tesira AVB-1

Biamp Tesira AVB-1

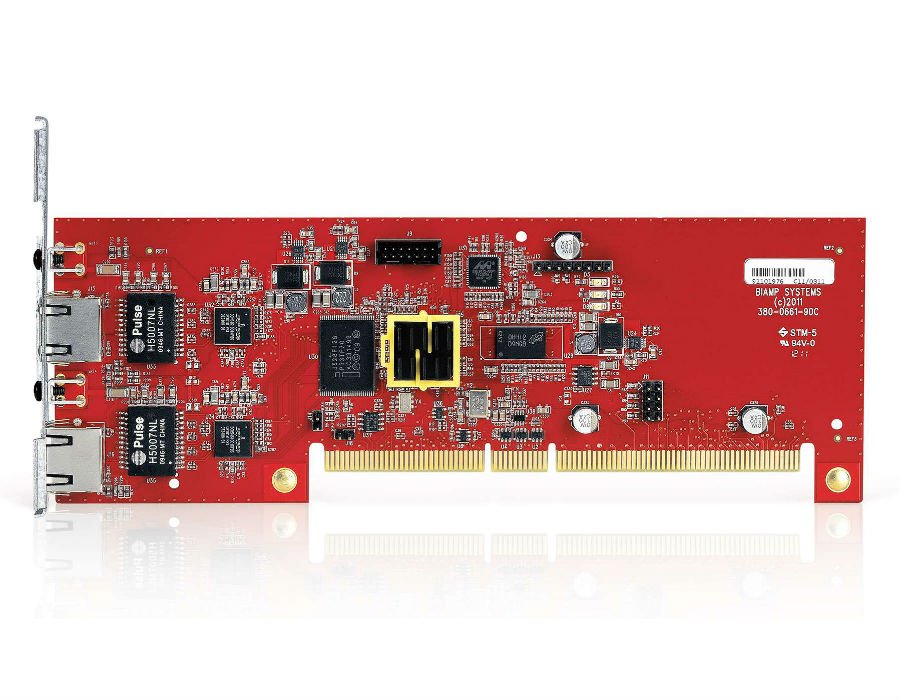

The Tesira AVB-1 is a modular digital audio networking card for use with Tesira SERVER and SERVER-IO devices. The AVB-1 allows a Tesira system to send and receive digital audio over an Ethernet network utilizing AVB enabled switches. AVB/TSN (Audio Video Bridging/Time Sensitive Networking) is an open standard protocol compliant with IEEE standards. In addition to allowing up to 420 x 420 channels of interconnectivity over AVB from any other compliant device, Tesira uses AVB/TSN as the interconnect between server devices and remote expander devices.

The Tesira AVB-1 is a digital audio networking card for Tesira SERVER and SERVER-IO devices that allows a Tesira system to send and receive digital audio over an Ethernet network utilizing AVB-enabled switches.In addition to allowing up to 420 x 420 channels of interconnectivity over AVB from any other compliant device, Tesira uses AVB/TSN as the default interconnect transport between Tesira DSPs and remote devices. Explicit input and output blocks are available in Tesira software for signal routing, and the AVB-1 card can be factory installed or installed in the field.

• Up to 420 x 420 channels of digital I/O over AVB
• Very low network latencies
• Media and control data managed on a single network
• Covered by Biamp Systems’ five-year warranty
• IEEE Standards based
  • 802.1AS
  • 802.1Qav
  • 802.1Qat
  • 1722
  • 1722.1

Dual RJ-45 connections for primary and secondary
redundant networks
• Can be installed in conjunction with DAN-1 and SCM-1
cards
• System configuration and control via Ethernet
• RoHS compliant and AES grounded
• Covered by Biamp Systems’ 5-year warranty

ARCHITECTS & ENGINEERS SPECIFICATION
The digital audio networking card shall be designed for installation at the factory or in the field. The digital audio networking card shall be installable into Tesira SERVER or Tesira SERVER-IO. The digital audio networking card shall be equipped with dual RJ-45 connectors allowing for interface with devices utilizing AVB/TSN. The digital audio networking card shall operate in a single chassis or over a larger Tesira system in conjunction with other digital networking protocols including CobraNet® and Dante™. The digital audio networking card shall incorporate AES48-2005 Grounding and EMC practices and shall be compliant with the RoHS Directive. Warranty shall be five years. The digital audio networking card shall be Tesira AVB-1
