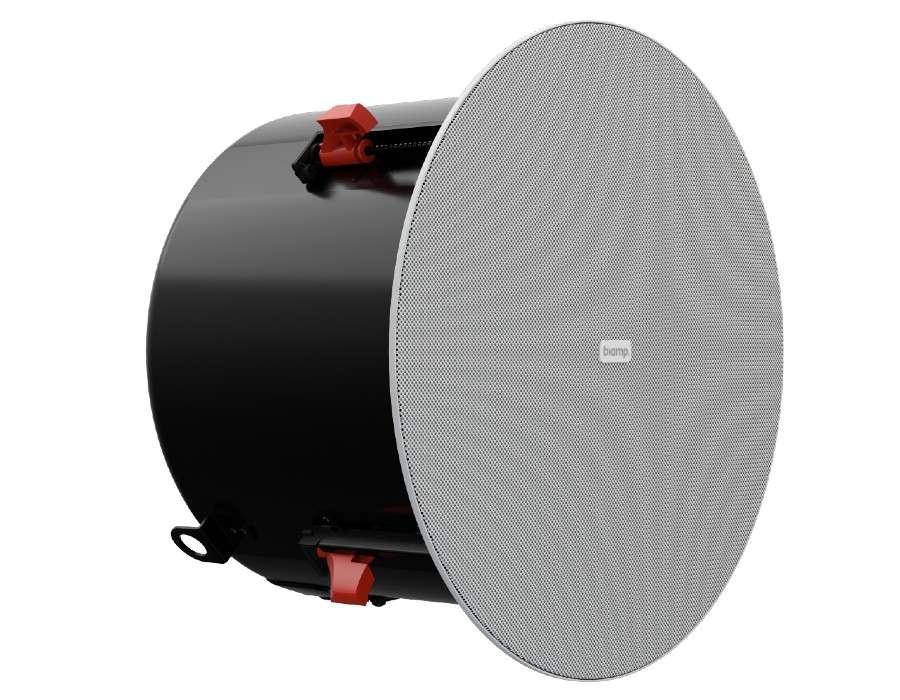

Biamp DX-IC8-W

Biamp DX-IC8-W

DESCRIPTION

The Desono DX-IC8 rewrites the cost-toperformance equation for high-end ceiling loudspeakers. Able to fulfill a wide variety of needs, the DX-IC8 exceeds the performance of competing “high-ceiling” models. Foreground music, high-level paging, and augmentation of large music systems as a delay or fill speaker in ancillary zones are all within the capability of this versatile performer. It is ideal for high ceiling applications.Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX-IC8 apart from other products in its size and price range. Featuring genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC8 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products. Patent-pending SpringLock™ clamps allow singlehanded placement to speed installation and reduce labor time. The SpringLock spring-loaded clamps support the back can on the included tile rails and snap-on C-ring, so that the installer can just tighten the clamps, securing it in the ceiling. A magnetic grille and front-face wattage selector switch enables quick adjustment of 70 V/100 V tap levels. A variety of installation accessories
are available to accommodate different ceiling materia

FEATURES

• High intelligibility with exceptional uniform coverage
• Fast installation with SpringLock™ mounting clamps
• Higher output than typical ‘High-Ceiling’ 8″ ceiling speakers
• Attractive edgeless magnetic grille design
• Conduit knock-outs on the input cover meet Chicago plenum air space requirements

APPLICATIONS

Large Conference Rooms · Houses of Worship
Theaters · Sports Facilities · Health Clubs
Convention Cente
