Biamp EOC-4
Biamp EOC-4

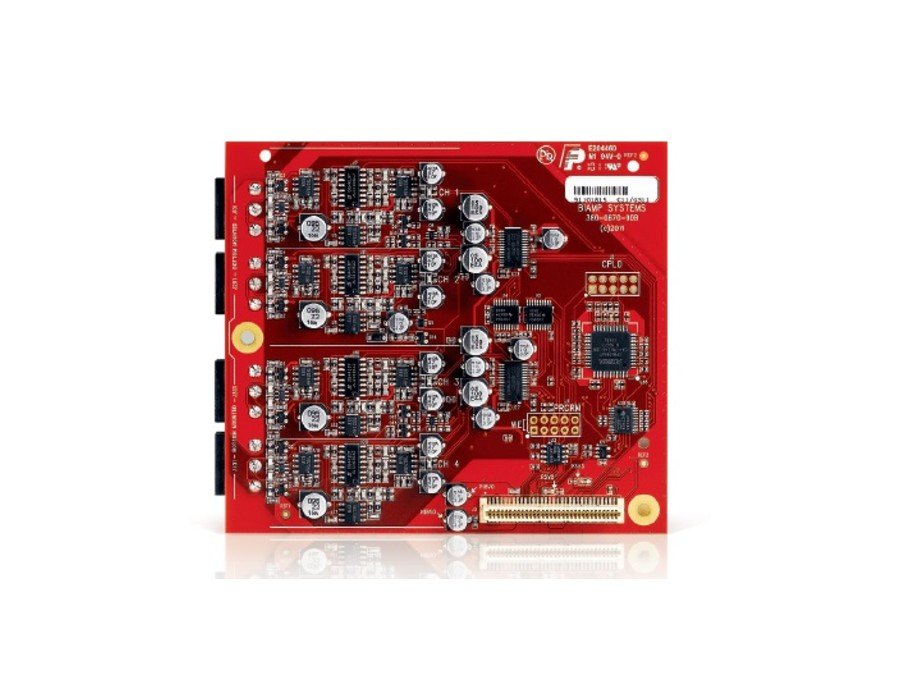

The Tesira EOC-4 is an expander card with 4 analog output channels for use with Tesira EX-MOD device. The EOC-4 is one of three optional cards that can be mounted in Tesira EX-MOD. Each EOC-4 provides 4 channels of line level audio output. The outputs are electrically balanced and provided on plug-in barrier strip connectors. Software control of each output includes mute, level, signal invert and full-scale output reference. The modular card shall provide 4 balanced outputs on plug-in barrier strip connections. Software configuration and control for each output shall include mute, level, signal invert and selectable output reference level.
- 4 channels of balanced line level output
- Plug-in barrier strip connectors
- -100dB to +12dB fader range for level
- Signal invert for reverse polarity
- Selectable full-scale output reference level for best interface/performance
- RoHS compliant and AES grounded.
ARCHITECTS & ENGINEERS SPECIFICATION
The line level output shall be a 4-channel card designed exclusively for use with Tesira EX-MOD. The modular card shall provide 4 balanced outputs on plug-in barrier strip connections. Software configuration and control for each output shall include: mute, level, signal invert and selectable output reference level (24dBu, 18dBu, 12dBu, 6dBu, 0dBu, -31dBu). Digital-to-Analog conversion shall be 24-bit with a sampling rate of 48kHz. Performance specifications (20Hz-20kHz) shall be: Frequency Response +0/-0.25dB; THD+N < 0.0035%; and Dynamic Range > 110dB. The modular output card
shall incorporate AES48-2005 Grounding and EMC practices and shall be compliant with the RoHS Directive. Warranty shall be 5 years. The output card shall be Tesira EOC-4.
