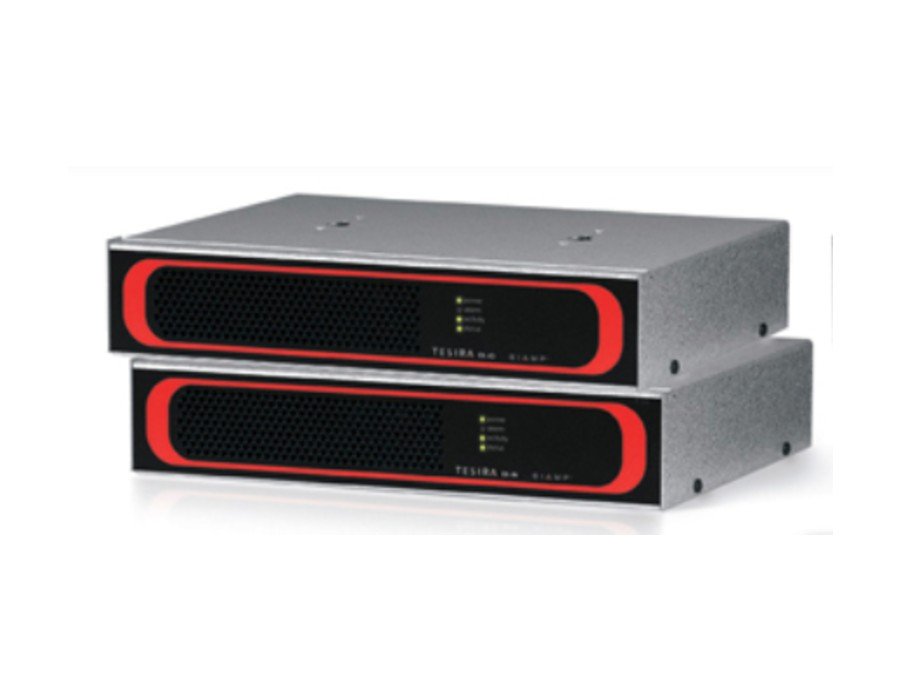

Biamp EX-IO

Biamp EX-IO

The Tesira EX-IO is a half-rack expander box for use with Tesira SERVER and SERVER-IO devices. The EX-IO is a 4-channel input and output expander. The expander features two channels of mic/line level input and 2 channels of mic level output. The expander communicates with the Tesira AVB network for audio networking, configuration and control and is powered by PoE+. The Tesira EX-IN is a half-rack expander box for use with Tesira SERVER and SERVER-IO devices. The expander shall deliver line level analog input/output on plug-in barrier strip connection. Analog-to-Digital and Digital-to-Analog conversion shall be 24-bit with a sampling rate of 48kHz.

BENEFITS

• Up to three I/O cards in any combination: EIC-4, EEC-4, EOC-4, and EIOC-4
• Offers remote placement of input and output capabilities
• Exact I/O configuration can be customized specifically for the local zone
• Modular design allows for flexibility to change or expand the system

FEATURES

• Up to three I/O cards in any combination: EIC-4, EEC-4,
EOC-4 and EIOC-4
• Up to 12 channels total of analog audio
• AVB connection to Tesira system for audio networking,
configuration and control
• Front panel LEDs for device status indications
• Internal universal power supply
• Rack mountable (1RU)
• CE marked, UL listed and RoHS compliant
• Covered by Biamp Systems’ 5-year warranty
