Biamp TesiraFORTÉ AI

Biamp TesiraFORTÉ AI

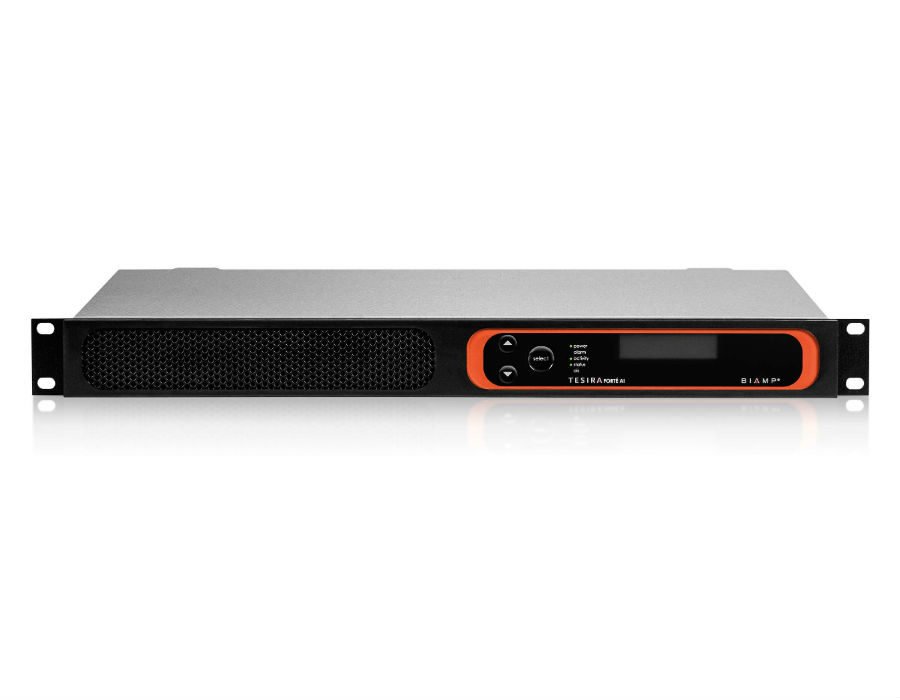

The TesiraFORTÉ AI is a digital audio server with 12 analog inputs and 8 analog outputs, and includes up to 8 channels of configurable USB audio.

• 12 mic/line level inputs, 8 mic/line level outputs
• Gigabit Ethernet port
• RS-232 serial port
• 4-pin GPIO
• 2-line OLED display with capacitive-touch navigation
• Rack mountable (1RU)
• System configuration and control via Ethernet
• Internal universal power supply
• Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalization, filtering, and delay
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty.

ARCHITECTS & ENGINEERS SPECIFICATION

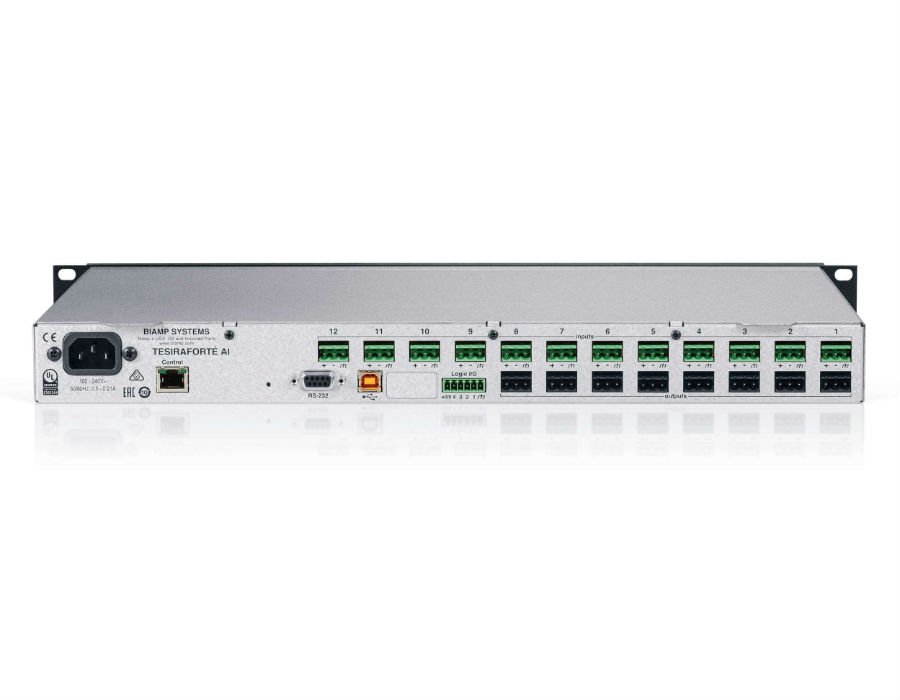

The fixed I/O DSP shall be designed exclusively for use with Tesira® systems. The fixed I/O DSP shall support Ethernet connection for programming and control on a RJ-45 connector. The fixed I/O DSP shall have internal DSP processing. The fixed I/O DSP shall include 4 channels of General Purpose Input and Output connection (GPIO) for sending or receiving logic signals. The programming of the GPIO ports shall be software configurable. The fixed I/O DSP shall include a RS-232 connection for control data transmission into or out of the fixed I/O DSP and such operation shall be software programmable. The fixed I/O DSP shall include a Universal Serial Bus (USB) connection on a standard USB-B type connector. The fixed I/O DSP shall be software configurable to stream up to 8 channels of digital USB Class 1 Audio transmission either into or out of the fixed I/O DSP or simultaneous input and output. The fixed I/O DSP shall support port authentication via IEEE 802.1X. The fixed I/O DSP shall provide 12 balanced input connections for receiving of microphone or line level analog audio signals on screw-down, removable connectors. The fixed I/O DSP shall provide 8 balanced output channels for the transmission of microphone or line level analog audio signals on screw-down, removable connectors. Each individual channel shall have its own dedicated connection. The fixed I/O DSP shall provide front panel OLED identification of device power, status, alarm, and activity as well as system-wide alarm. The fixed I/O DSP shall be rack mountable (1RU) and feature software-configurable signal processing, including but not limited to: signal routing and mixing, equalization, filtering, dynamics, and delay, as well as control, monitoring, and diagnostic tools. The fixed I/O DSP shall be CE marked, UL listed, and shall be compliant with the RoHS directive. Warranty shall be five years. The fixed I/O DSP shall be TesiraFORTÉ® AI.
