Biamp Tesira SERVER-IO
SERVIDOR DE RED DIGITAL
PRESENTACIÓN: PIEZA

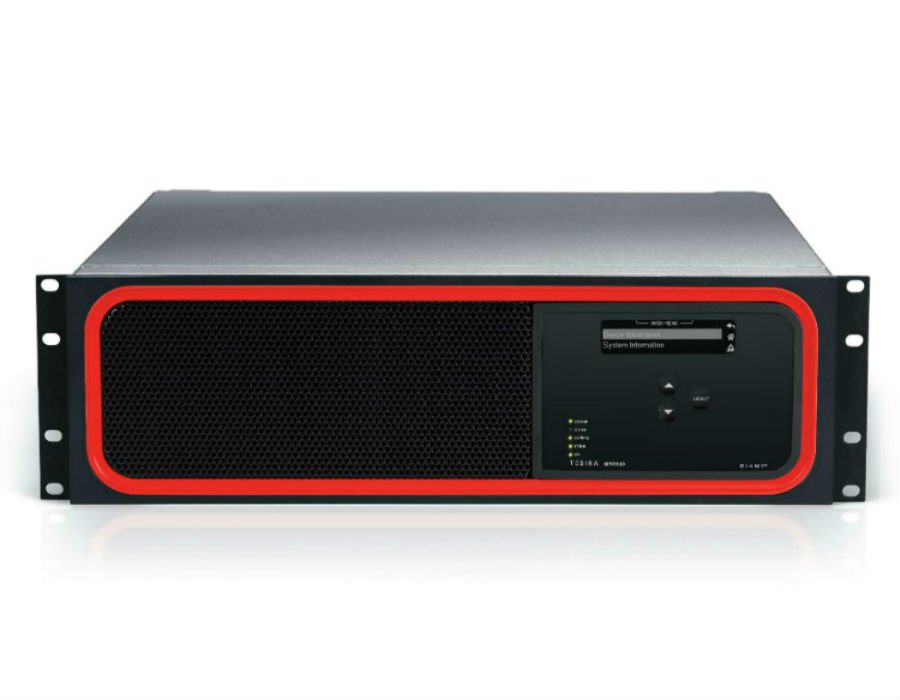

Biamp Tesira SERVER-IO
Biamp Tesira SERVER-IO
The Tesira SERVER-IO is a digital network server. It is factory configured with one DSP-2 card and is capable of handling up to two additional DSP-2 cards. The SERVER-IO has capacity for up to three total audio networking cards per server. The combinations of networking cards may include one AVB-1 Audio Video Bridging network cards, up to two SCM-1 CobraNet network cards, and up to two DAN-1 Dante network cards in any configuration. The SERVER-IO can support up to 12 standard Tesira I/O cards for up to 48 channels of audio I/O (e.g. mic and line level, VoIP, and FXO telephone interface). The SERVER-IO can be used as a standalone device or with Tesira expanders to form a highly scalable audio network.
- Supports up to 3 DSP-2 cards
- Supports up to 12 I/O cards with a maximum of 48 channels of analog audio
- Up to 420 x 420 channels of digital I/O over AVB
- Supports optional 32 x 32 CobraNet audio networking
- Supports optional 64 x 64 Dante audio networking
- System configuration and control via Ethernet or serial connection
- Front panel OLED display for device and system information
- SpeechSense™ and AmbientSense™ processing algorithms
- Signal processing via intuitive software allows configuration and control for: signal routing and mixing, equalization, filtering, dynamics, delay and much more
- Extensive input, output and logic expansion devices supported as part of the Tesira digital audio networking platform
- Rack mountable (3RU)
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty.
The Tesira AVB-1 is a modular digital audio networking card for use with Tesira SERVER and SERVER-IO devices. The AVB-1 allows a Tesira system to send and receive digital audio over an Ethernet network utilizing AVB enabled switches. AVB/TSN (Audio Video Bridging/Time Sensitive Networking) is an open standard protocol compliant with IEEE standards. In addition to allowing up to 420 x 420 channels of interconnectivity over AVB from any other compliant device, Tesira uses AVB/TSN as the interconnect between server devices and remote expander devices.
Más productos Biamp
| OPCION | SERVER-I0 AVB |
|---|
