Biamp Audia TI-2

Biamp Audia TI-2

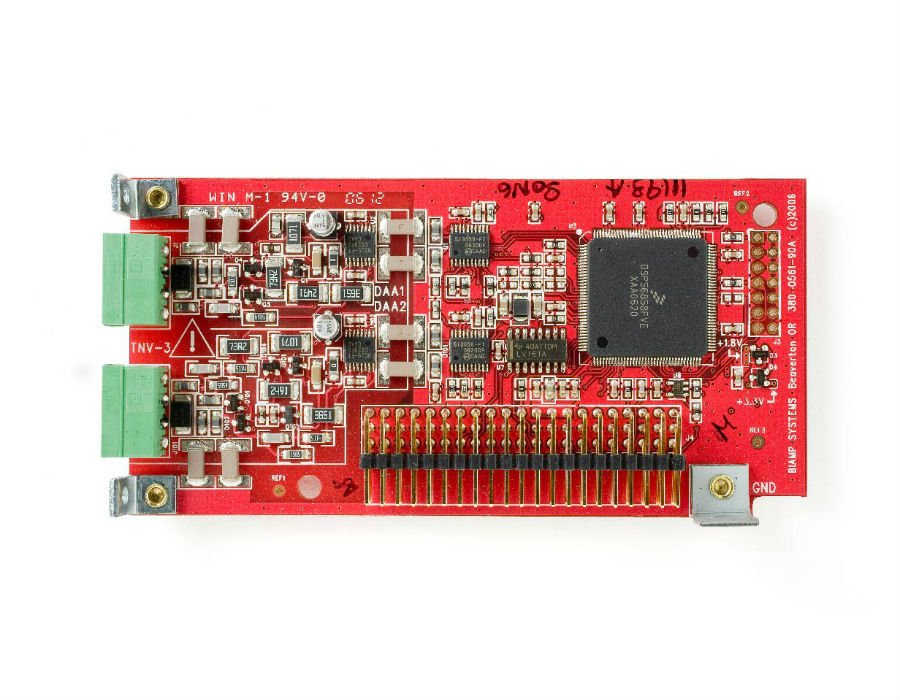

Dual-Channel Telephone Interface Cards

TI-2 dual-channel Telephone Interface Cards allow AudiaFLEX to connect directly to standard analog lines. Being more than just a normal ‘hybrid’, each channel of the TI-2 includes line-echo cancellation, noise suppression, caller ID decoding, ring detection/validation, DTMF tone dialing, DTMF decoding, and call progress tone decoding. Used in conjunction with AEC2 Acoustic Echo Cancellation Cards, the TI-2 makes AudiaFLEX the most powerful, flexible, and affordable telephone conferencing product available. The TI-2 also allows AudiaFLEX to respond to DTMF control commands such as preset recalls from any telephone system. The TI-2 can be used for audio input-only applications such as paging access; or for audio output-only applications such as broadcast feeds and remote system monitoring. Up to twelve TI-2 Telephone Interface Cards can be installed into a single AudiaFLEX uni

• Initiate outgoing calls including: DTMF tone dialing, speed-dialing, redial, flash
• Detect and answer incoming calls
• Line-echo cancellation
• Continuous line-status and fault monitoring
• • Line intrusion detection
  • Noise suppression filter
  • Continuous Line Status and Fault Monitoring
  • Can be controlled by:
  Commands from external control systems
  Control dialog boxes within Audia software
  Logic control from within Audia or RCB devices
  • Extensive customization options and parameters
  • RoHS compliance and AES grounding practices
  • Covered by Biamp Systems’ five-year warranty

ARCHITECTS & ENGINEERS SPECIFICATION

The telephone interface shall be a two-channel card for AudiaFLEX hardware, and shall allow direct connection to standard analog telephone lines. Each channel shall provide normal 2-wire to 4-wire ‘hybrid’ functions, as well as lineecho cancellation, noise suppression, caller ID decoding, ring detection/validation, DTMF tone dialing, DTMF decoding,and call progress tone decoding. The telephone interface shall allow AudiaFLEX to respond to DTMF control commands such as preset recalls from any telephone system. The telephone interface may be used for audio input-only applications such as paging access; or for audio output-only applications such as broadcast feeds and remote system monitoring. Up to twelve telephone interface cards may be installed into a single AudiaFLEX unit. The telephone interface card shall incorporate AES48- 2005 Grounding & EMC practices, and shall be compliant with EU Directive 2002/95/EC, the RoHS directive.Warranty shall be 5 years. The telephone interface shall be a TI-2 Card for AudiaFLE
