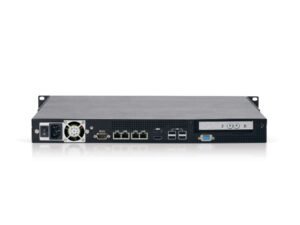

Biamp Vocia MS-1e

The MS-1e is a networked messaging processor that supports many global paging functions in a Vocia® system, including message playback, event scheduling, VoIP paging interface, email reporting, logging, and remote access. The MS-1e acts as a central repository for the system configuration in addition to the locally-stored device files and enables plug and play device configuration and replacement. The MS-1e uses Ethernet-based control protocols in conjunction with CobraNet® to function within a Vocia system. In addition, the MS-1e supports inter-world paging and communications via TCP/IP

Recorded message storage and playback • Event scheduling • Storage of logged system data • VoIP paging interface • Email reporting • Inter-world paging support • System configuration storage and service • Time server support • CobraNet audio/control with dynamic use of available bundles over a single Ethernet cable • Remote third party control capability via IP or RS232 using Vocia Text Protocol (VTP) • Status LED • Separate Ethernet ports for TCP/IP Control, CobraNet and VoIP • Rotary switches for unit identification • Rack mountable (1RU) • CE marked and RoHS compliant • Covered by Biamp Systems’ two-year warranty ARCHITECTS & ENGINEERS SPECIFICATION The message processor shall be designed exclusively for use with Biamp® Vocia® systems.

The processor shall be rack mountable in one rack space (1RU) and shall support advanced paging functionalities such as recorded message storage and playback, system configuration storage, inter-world support, event scheduling, time server support, storage of logged system data, VoIP triggered paging, email notification, and remote third party control capability. The processor shall feature a status LED and separate ports for TCP/IP Control and CobraNet. The message processor shall be CE marked and shall be compliant with the RoHS directive. Warranty shall be two years. The message processor
