Bogen CAM8PRO

Bogen CAM8PRO

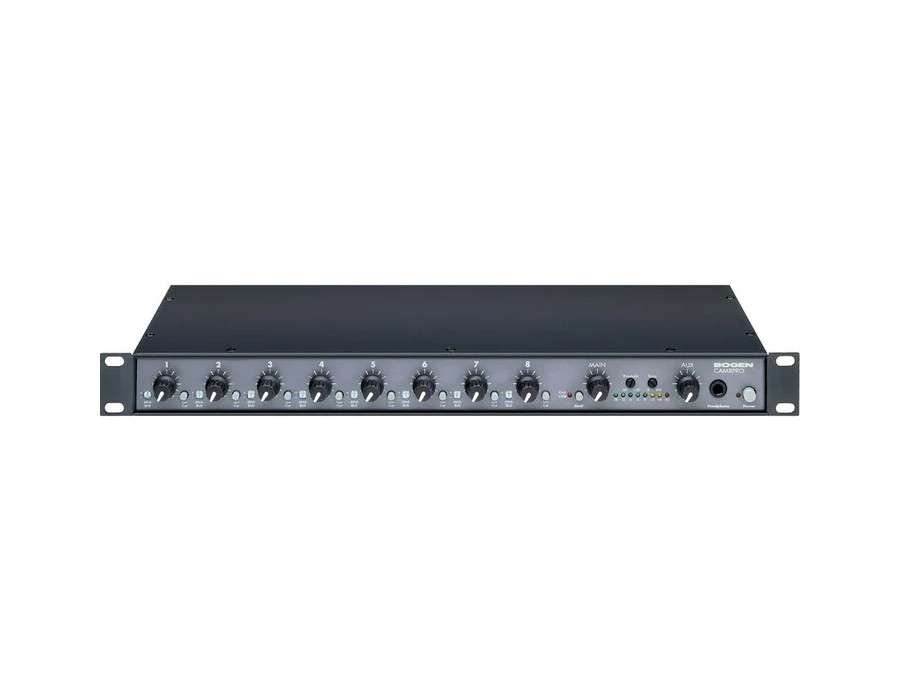

The Bogen CAM8PRO is an 8-input, dual-bus MIC/Line mixer that combines superb performance with a generous array of simple-to-use features in a single-rack space design. It features 8 independently assignable inputs switchable between MIC and Line. Each input has a trim control, a switchable low-cut filter, and a Main/Auxiliary bus output selector. An additional Auxiliary input can be routed to the Main output, AUX output, or both by setting internal jumpers. Phantom Power is provided for condenser microphones.

The CAM8PRO also features a built-in Compressor/Limiter with adjustable Threshold and Ratio Controls. A Bar Graph Output Meter indicates output signal levels. The CAM8PRO also includes a headphone output. Solidly engineered, the Bogen CAM8PRO mixer will provide many years of trouble-free operation.

Bogen Commnunications CAM8-PRO Features:

• 8 independently assignable inputs
• Dual-bus design with Main/AUX output selector for each input
• Compressor/Limiter (Main output)
• Compressor/Limiter Bypass switch
• Adjustable Threshold and Ratio Controls
• LED Bar Graph Output Meter (Peak or Average)
• Pluggable terminal strip connections
• Separate Auxiliary input
• Balanced inputs and outputs
• Direct bus connection for cascading multiple mixers
• MIC/Line switch for each input and Main output
• Gain/Trim Control for each input
• Low Cut Filter for each input
• Switchable Phantom Power for condenser MIC inputs
• Input Level Control knob for each input
• Output Level Control knob for Main and AUX outputs
• Headphone Output
• Sealed potentiometers for low noise and long life
• Heavy-duty construction
• External power supply
• Single-rack space

Bogen Commnunications CAM8-PRO Specifications:

• 8×2 MIC/Line Mixer
• Dimensions (WxHxD): 9″ x 1.75″ x 7.5″
• Signal-to-Noise Ratio: 90dB
• Max. Voltage Gain: 96dB
• Frequency Response: 20Hz to 20kHz ± 1dB
• Crosstalk (Adjacent Channels): > -90dB
• Phantom Power (Switchable): +30V DC
• Input Gain/Trim Range: 40dB
• Low-Cut Filter: 18dB/octave at 100Hz
• Internal Adjustments for Built-in Features
