Bogen CS1EZ

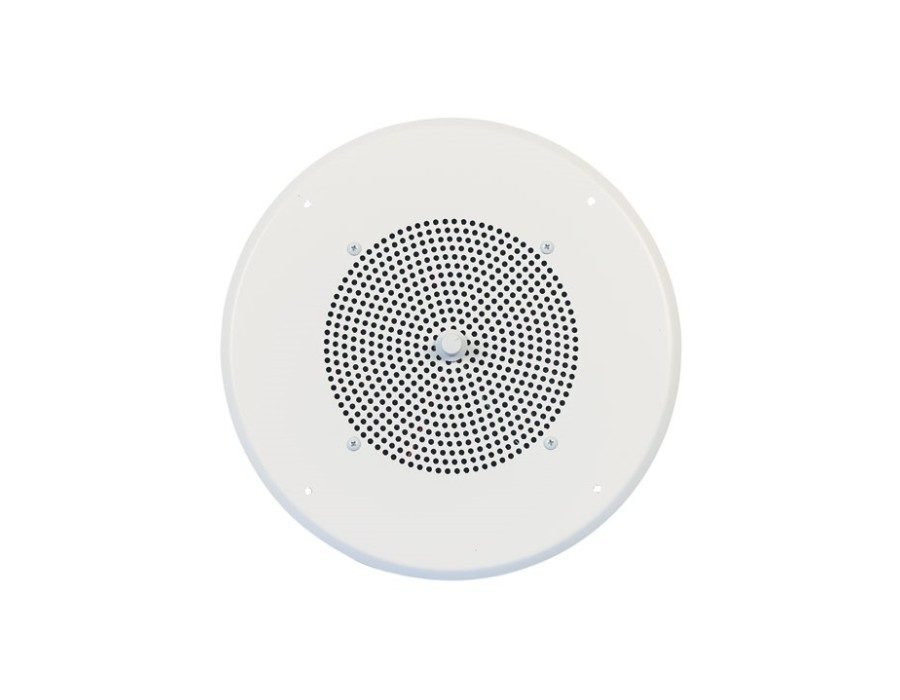

Bogen CS1EZ Easy Design Ceiling Speaker

The white Bogen Communications CS1EZ is an Easy Design series 8″ 1W single-tap passive speaker assembled on a ceiling grille for paging, talkback, background music, and security applications in schools, warehouses, offices, and more. When connected to a 70V amplifier (available separately), the 8″ cone-type loudspeaker delivers a 1W output, a maximum SPL of 95 dB, and a frequency response of 50 Hz to 12 kHz.

The Bogen CS1EZ is a pre-assembled 1-watt single-tap ceiling speaker designed for use with 70V amplifier
systems. Comprised of an 8″ cone speaker and 13″ diameter steel ceiling grille finished with white enamel, the
CS1EZ includes a rear-mounted screw terminal board for fast, easy installation. An accessible volume control
knob is located on the faceplate.

Easily wire the CS1EZ using the screw terminal input connections, and adjust the volume via the front-mounted knob without having to remove the speaker or grille. The grille is constructed of steel to maintain rigidity, and features a durable enamel coating.

• 1-watt, single-tap design
• Screw terminal connections for fast installation
• Designed for 70V amplifier output
• 8” cone speaker for excellent audio quality
• Heavy-duty, wire-wound volume control with knob
• 50 Hz-12 kHz frequency response
• 95 dBspl @ 4 ft. /1W input sensitivity
• Off-White finish
