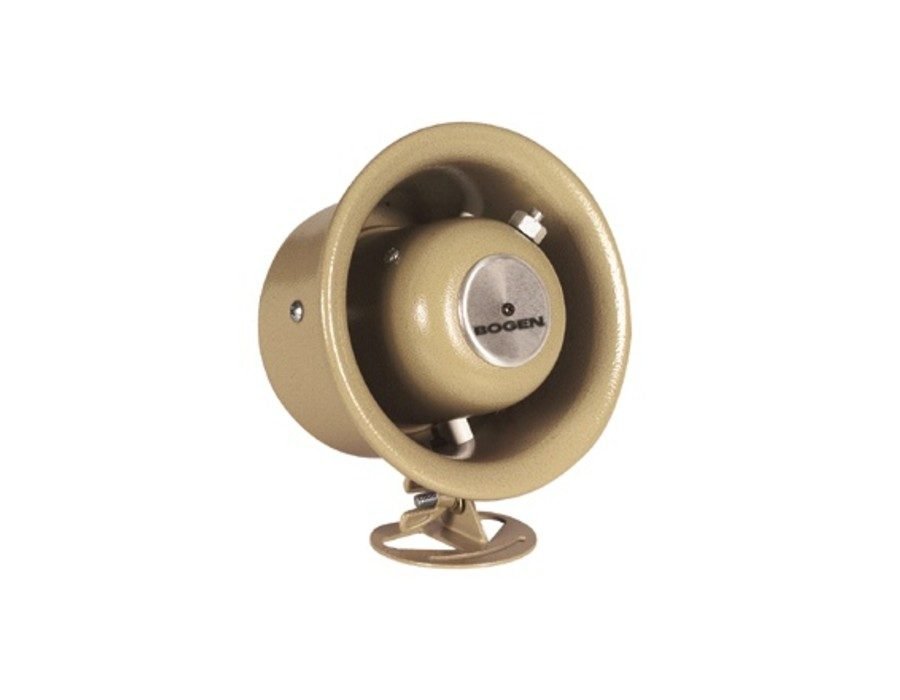

The mocha Bogen Communications HS7EZ is an Easy Design series 7.5W single-tap paging horn offering intelligible voice reproduction and versatile positioning for paging, talkback, and security applications in work sites, schools, parking lots, warehouses, and more. When connected to a 70V amplifier (available separately), it delivers a 7.5W output, a sound pressure level of 105 dB, and a frequency response of 250 Hz to 14 kHz. Volume is adjustable via a stepped attenuator control.
Bogen’s Easy Design line of horn loudspeakers are compact, high intelligibility, reentrant type loudspeakers
designed for use with 70V amplifier systems. Their sturdy, weatherproof, all-metal construction is ideal for
indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas.
The HS7EZ is a 7.5-watt single-tap speaker; the HS15EZ, a 15-watt single-tap speaker; and the HS30EZ, a
30-watt single-tap speaker. All three models include a stepped attenuator volume control and come with a
tilt and swivel mounting base for greater flexibility in setting the angle of projection.
The HS15EZ and HS30EZ are engineered to simplify installation (with a uniquely designed all-purpose
mounting bracket) and field maintenance (with a self-aligning, field replaceable diaphragm), which save both
time and money.
Both the speakers and the mounting brackets are attractively finished in textured mocha enamel.
Its weatherproof, all-metal housing ensures reliable durability indoors and outdoors, and can be precisely tilted and swiveled using the sturdy mounting bracket. Banding slots allow mounting to a beam or pillar, and I-beam flange mounting is supported via the Bogen BC1 clamp (available separately). A 12″ lead wire permits simple electrical connections to your 70V amp.
