Bogen OCS1

Bogen OCS1Orbit Ceiling Speakers

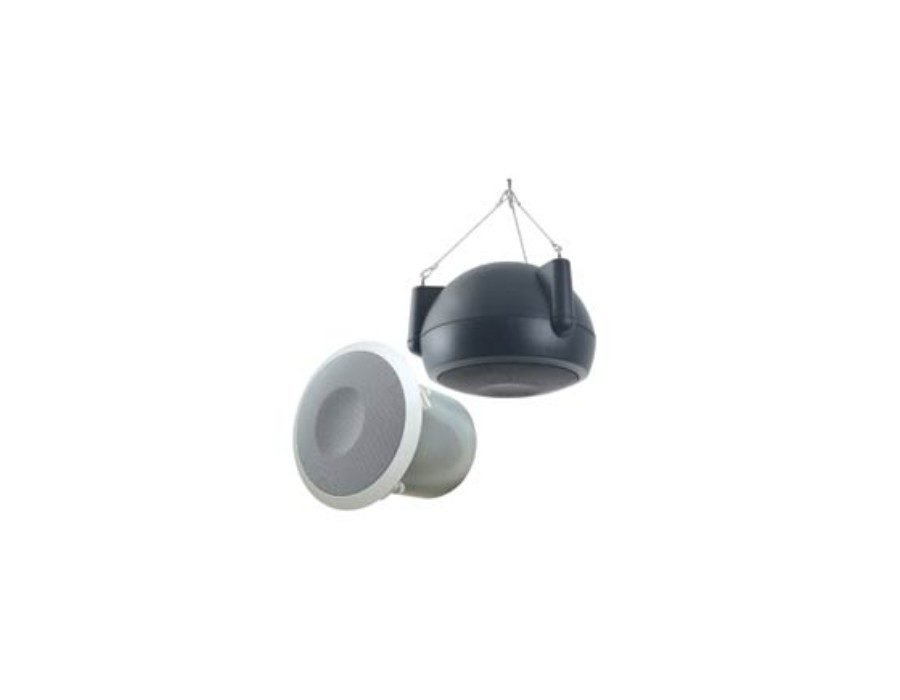

The off-white OCS1 Orbit Ceiling Speaker from Bogen is a 2-way, 6.5″ coaxial speaker. It is suitable for various ceiling applications as it can be installed on hard surfaced ceilings, or in suspended ceilings and new construction (with an optional TBCR bracket).

The speaker utilizes a spiderless driver and a one-piece metal alloy cone structure for clear articulation in both music and speech. It features a wide-dispersion coaxial driver, which has a coverage of 140° and a computer-matched venting system for full bass response. The speaker affords the user flexibility as it can be used at 16-ohms, or with 70V or 100V systems and power input selection is chosen by a front-mounted rotary switch located under the removable grille.

The Orbit speaker utilitzes Bogen’s NEAR technologies such as MDT (Metal Diagram Technology) and MLS (Magnetic Liquid Suspension) for efficient, reliable sound

Selectable power taps via front-mounted control

Wide-dispersion coaxial driver provides coverage of 140°

High definition metal-alloy cone

High power handling capability

Good off-axis response

16-ohm input for non-transformer multi-speaker systems

Snap-on connector for easier wiring

Connector provides loop-through to next speaker

Input terminal cover with knockouts and safety eyelet provides protection for connections

Low-resonance cabinet structure

Can be painted to match decor.
