Bogen SPT15A
Bogen SPT15A Horn Loudspeakers

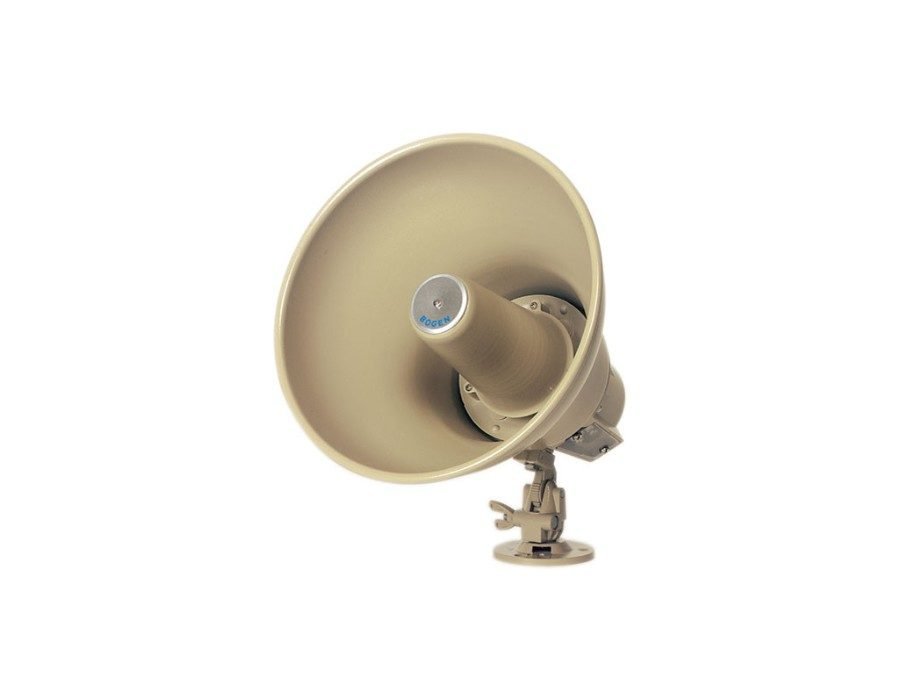

The mocha Bogen Communications SPT15A is a 15W reentrant horn loudspeaker offering intelligible voice reproduction and versatile positioning for paging, talkback, and security applications in work sites, schools, parking lots, warehouses, and more. When connected to a 25V or 70V amplifier (available separately), it delivers a 15W output, a sound pressure.
The Bogen SPT5A and SP58A are compact, reflex horn-type loudspeakers, designed for one-way or two-way
sound and communications systems.Their wide frequency response assures full-range background music reproduction, making these loudspeakers an excellent choice for multi-purpose applications, indoor or outdoor, for
use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas.
The SPT5A has a built-in, variable impedance selector switch for matching the speaker power requirements to
a 25V or 70V constant-voltage line.The SP58A has an 8-ohm impedance.
The loudspeakers measure 6″ in diameter and 4″ deep. Connections are made through a 12″ connecting cable.
The SPT15A and SP158A are compact, high intelligibility, reentrant-type horn loudspeakers, designed for one-way or two-way sound and communication systems. Their sturdy, weatherproof, all-metal construction is ideal for indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas. The Model SPT15A has a built-in, rotary impedance selector switch for matching the speaker power requirements to a 25V or 70V constant-voltage line. The model SP158A has an 8-ohm impedance only.
• High intelligibility and efficiency
• Passive loudspeaker
• Ideal for both one-way and two-way applications
• 7.5 watts
• 25/70V or 8-ohm operation
• Variable-tap impedance selector on SPT5A
• All-purpose mounting bracket for precise positioning, both vertically and horizontally
• Weatherproof, all-metal construction
• Textured mocha enamel finish
