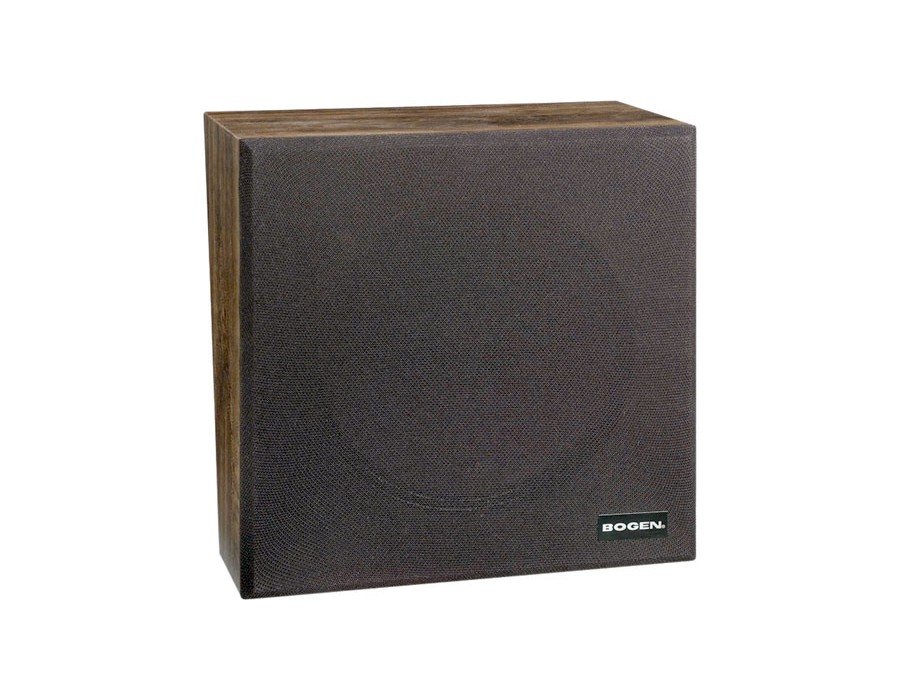

Bogen WB1EZ
Finished in simulated walnut with a black grille cloth, the Bogen Communications WB1EZ is an 8″ 1W loudspeaker fully assembled in a wall baffle for paging, talkback, background music, and security applications in schools, warehouses, offices, and more. When fed from a 70V amplifier (available separately), the 8″ cone-type loudspeaker delivers a 1W output, a maximum SPL of 95 dB, and a frequency response of 50 Hz to 12 kHz.
Screw terminals offer simple connectivity, and a recessed volume control inhibits unintended level changes. The baffle is constructed of particle board to maintain lightness, and features a sloping front panel to improve downward dispersion.
8″ cone-type loudspeaker
1W single-tap configuration
Works with 70V constant-voltage amplifiers
Screw terminals connections for fast wire lead hook-up
The Bogen WB1EZ Wall Baffle Speaker is an 8″ cone speaker enclosed in a simulated walnut-finished wooden enclosure with a black grille cloth on front. The WB1EZ is a 1-watt single-tap speaker with recessed volume control designed for use in 70V amplifier systems. Designed for easy wall-mount installation, the WB1EZ comes pre-assembled.
- Features screw terminal connections for fast wire lead connection
- 1W single-tap design
- Works with 70V amplifier outputs
- High intelligibility and efficiency
- Simulated walnut vinyl finish
- Designed for easy wall-mount installation
- 8″ cone speaker
- Wooden cabinet
- Recessed volume control
- Dimensions: 9-1 /2″ W x 9-1 /2″ H x 5-1 /4″ D [top] (3-1 /4″ D base)
