Bose DesignMax DM8C-Sub



Este producto no está disponible porque no quedan existencias.



Bose DesignMax DM8C-Sub

Bose DesignMax DM8C-Sub Subwoofer Loudspeaker (Product Code 829380-0110 black, 829380-0210 white)

Premium sound to maximize any design.

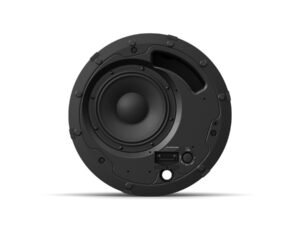

Bose DesignMax DM8C-Sub, delivering rich low-end performance, the 180-watt DesignMax DM8C-SUB subwoofer brings instantly impressive bass to any commercial sound installation. The in-ceiling DM8C-SUB has an 8-inch woofer, 38 Hz – 155 Hz frequency range, and is installed easily via QuickHold mounting arms. DesginMax subwoofers complement and enhance any DesignMax installation.


Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver rich bass performance with custom Bose drivers; for optimal performance use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Technical Summary

Frequency Response (+/-3 dB)
45 – 117 Hz

Nominal coverage (H x V)
Onmidirectional below 200 Hz

Power Handling, peak
720 W

Maximum SPL @ 1m
112 dB

Frequency Range (-10 dB)
38 – 115 Hz

Power Handling, long-term continuous
180 W

Sensitivity (SPL/1W @ 1 m)
89 dB

Nominal Impedance
8 Ω (transformer bypass)


  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues

Más productos Bose

Información adicional


Black, White
