Bose DesignMax DM8S

BAFLE PROFESIONAL DE INSTALACIÓN 150W

PRESENTACIÓN: PIEZA

Este producto no está disponible porque no quedan existencias.

SKU: N/D Categoría: Etiquetas: ,


Descripción

Bose DesignMax DM8S

Bose DesignMax DM8S Loudspeaker (Product Code 801332-0110 black, 801332-0210 white)

Premium sound to maximize any design.

Bose DesignMax DM8S, with coaxial two-way drivers, the 150-watt DesignMax DM8S loudspeaker delivers powerful SPL suitable for foreground music — along with premium aesthetics that complement any commercial sound installation. The DM8s features a two-way, 8-inch woofer and a center-firing coaxial 1-inch compression driver, delivering a 52 Hz – 20 kHz frequency range. The DM8S is surface-mounted and locks onto a hidden QuickHold U-bracket for fast, secure installation.

FEATURES

Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

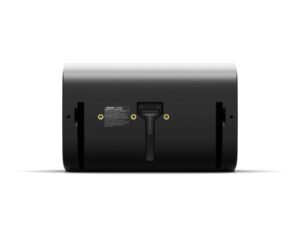

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Deliver high SPL for clear foreground music

Technical Summary

Frequency Response (+/-3 dB)
60 – 20,000 Hz

Nominal coverage (H x V)
130° conical

Power Handling, peak
600 W

Maximum SPL @ 1m
115 dB

Frequency Range (-10 dB)
52 – 20,000 Hz

Power Handling, long-term continuous
150 W

Sensitivity (SPL/1W @ 1 m)
93 dB

Nominal Impedance
8 Ω (transformer bypass)

Applications

  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venue

Más productos Bose

Información adicional

Color

Black, White
