CHAUVET 4BAR Flex ILS

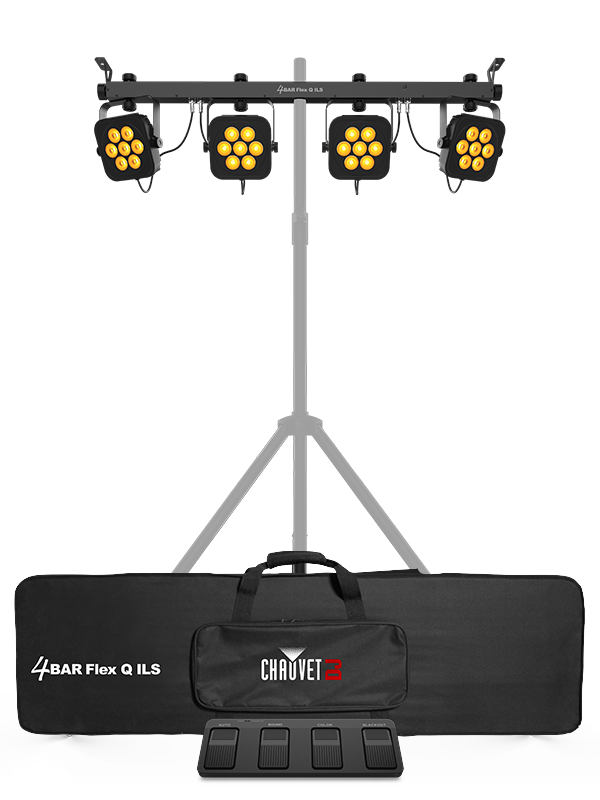

The complete convenience of wash lighting reaches new heights with 4BAR Flex Q ILS. This all-in-one system is equipped with four pair luminaires on one bar. Because the 4BAR Flex Q ILS supports Instant Light Show (ILS) which makes creating coordinated light shows on an unlimited number of different rigs quick and easy, generating synchronized light shows without DMX is even more easy. High-intensity quad-color (RGBA) LEDs generate a wide spectrum of colors and achieve natural-looking color temperatures with their striking amber LEDs. 4BAR Flex Q ILS easily sets up and dismantles in minutes and includes a handy carry bag. Adding to the versatility of the unit, there are two L-brackets that allow you to maximize installation possibilities and configurations. Easily mount up to 4 additional fixtures on top of the 4BAR Flex Q ILS and power additional lights using the built-in Edison sockets. 4BAR Flex Q ILS mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole. USB D-Fi™ compatibility for wireless master/slave or DMX control is built-in and multiple control options include standalone mode, DMX, wireless footswitch or IRC-6.

Complete wash lighting solution equipped with high-intensity four-color (RGBA) LEDs
ILS support for use in the Instant Light Show (ILS) ecosystem
Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole
Generates a wide spectrum of colors and achieves natural-looking color temperatures with striking amber LEDs
USB D-Fi™ support for wireless master/slave or DMX control
Create the ultimate light show by mounting up to 4 additional fixtures on top of the 4Bar Flex Q
Provides power to additional lights using built-in Edison plugs
Maximize installation possibilities and configurations with 2 included L-brackets
Easily sets up and dismantles in minutes with the included carry bag
Multiple control options include independent, DMX mode, wireless foot switch or IRC-6 remote control
Mounts securely to armor with integrated bolts

DMX Channels:4, 6 or 19
DMX Connectors:3-pin XLR
Max Unobstructed Distance:28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
Strobe Rate:0 to 20 Hz
Beam Angle:14°
Field Angle:23°
Illuminance:2,353 lux @ 2 m (per pod)
Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
80 W, 1.2 A @ 120 V, 60 Hz
78 W, 0.6 A @ 230 V, 50 Hz
Approvals:CE, RoHS, UKCA
Operating Frequency (D-Fi): 2.412 to 2.484 GHz
Operating Frequency (foot switch): 433 MHz
Max Unobstructed Distance (foot switch): 100 ft (30.5 m)
Footswitch battery: 9 V
Fits Tripod Sizes: 1.5 in (36.80 mm)
Bracket Mounting Hole: M10 (1.5 mm pitch)
Weight: 12.2 lb (5.5 kg)
Weight (Controller): 1.2 lb (0.6 kg)
Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
Included controller: IRC-6
Optional controller: D-Fi USB
