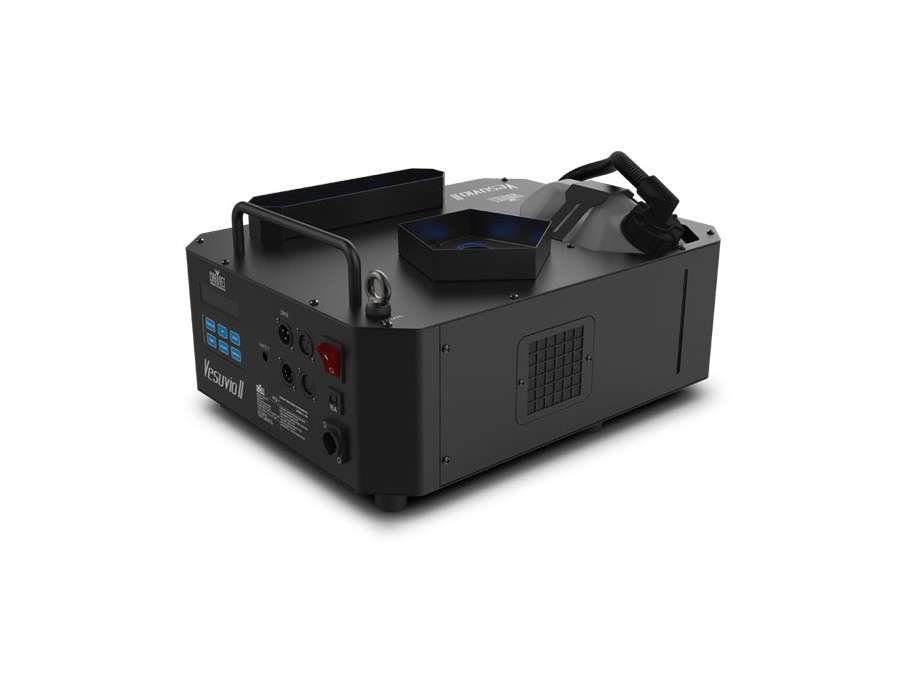

CHAUVET Vesuvio II

Vesuvio II illuminates bursts of fog with advanced RGBA+UV LED color mixing, providing ferocious effects for events and performances. Featuring an impressive 40,000 cubic feet of fog per minute, it boasts a best in class 40 seconds of full burst output. New dual LED sections give greater creative control for a more even coverage of light. The Vesuvio II is built for efficiency, consuming only 80 ml/min of QDF fluid. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets. It works best with

Advanced red, green, blue, amber, and UV (RGBA/UV) LED color mixing
40 second continuous bursts of fog, for intense effects and performance
40,000 CFM fog output for intense, large effects
2.5 l fluid tank for reliability in production
Strong, sturdy construction for numerous production types
DMX control for ease of use in production situations
3- and 5-pin DMX input/output connections

OPTICAL

Light Source: 10 LEDs (RGBA/UV) 8.5 W, (3 A), 50,000 hours life expectancy
Illuminance (Center): 199.5 lux @ 5 m
Illuminance (Linear): 154 lux @ 5 m
Illuminance (Both): 334 lux @ 5 m
PWM Frequency: 126 Hz

DYNAMIC EFFECTS

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Output: 40,000 cfm
Low Fluid Shutdown: No

CONSTRUCTION / PHYSICAL

Dimensions: 19.49 x 13.18 x 9.39 in (495 x 335 x 239 mm)
Weight: 28.4 lb (12.9 kg)
Exterior Color: BLACK
Housing Material: Steel
Tank Capacity: 0.7 gal (2.5 l)
Fluid Consumption: 80 ml/min
Maximum Run time: 1 hour @ 40s bursts, 1m intervals (using Chauvet QDF fluid)
Maximum Run time: 2 hours @ 40s bursts, 2m intervals (using Chauvet QDF fluid)
Maximum Run time: 2.5 hours @ 40s bursts, 3m intervals (using Chauvet QDF fluid)

CONNECTIONS

Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: DMX
DMX Channels: 15
Modes/Personalities: 1 personalities
On-Board Control: Yes
Included Remote: No

ELECTRICAL

Input Voltage (120V): 120 VAC, 60 Hz
Input Voltage (220V): 230 VAC, 50 Hz
Power and Current (120V): 1,480 W, 12.55 A @ 120 V, 60 Hz
Power and Current (220V): 2,880 W, 12.55 A @ 230V, 60 Hz
Heat-up Time (120V): 10 min
Heat-up Time (220V): 10 min
Breaker Size (120V): 15A
Breaker Size (220V): 15A
