Community R.5HPT

Community R.5HPT

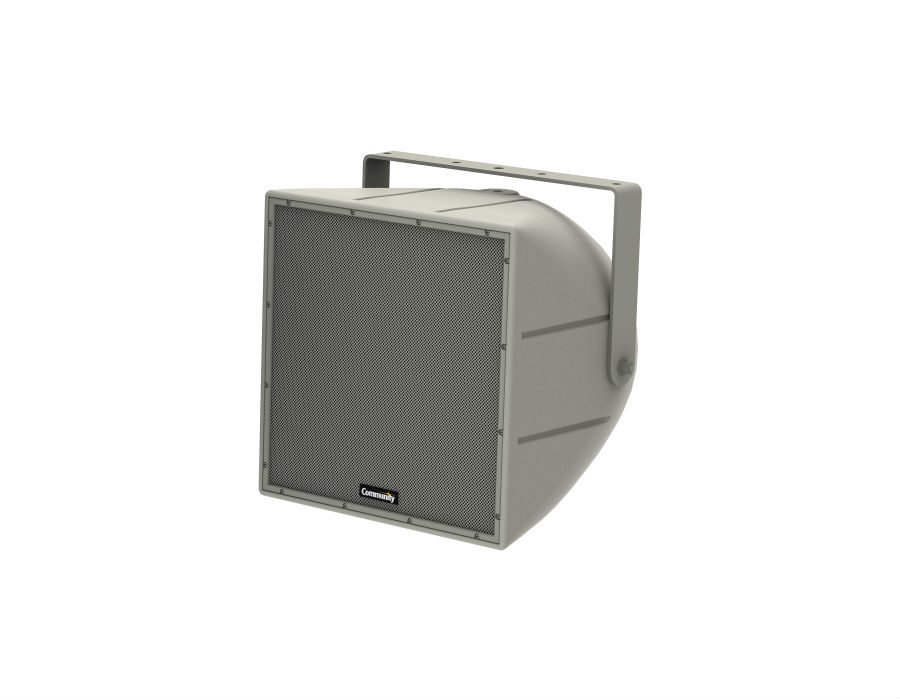

The R.5HPT is a three-way horn loaded weather-resistant loudspeaker system engineered to provide maximum intelligibility from a most compact design. By the packaging of Community’s well-known M200 midrange driver coaxially within the mouth of the 12″ LF horn, an extremely powerful tool for voice announcement systems was created. High frequencies are handled by Community’s non-metallic diaphragm UC1 1″ exit HF driver. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. The M200/UC1 creates effortless voice-power with HF sparkle that must be heard to be appreciated. No longer do audiences need to experience the unpleasant sound of «honky» re-entrant paging horns. The R.5HP can act as both a musical entertainment loudspeaker and a voice PA loudspeaker simultaneously.

APPLICATIONS
x Racetrack catch fence systems

FEATURES
x High frequency driver mounted 20 degrees vertically
x Weather-resistant, rotomolded UV enclosure
x Weather-treated drivers and crossovers
x Corrosion-resistant zinc-rich epoxy dual-layer powder
coated steel grille and yoke
x Pattern control down to 630 Hz
x High efficiency
x High power passive crossover
x Included yoke mounting bracket
x Five-year product warranty / Fifteen-year enclosure
warranty
