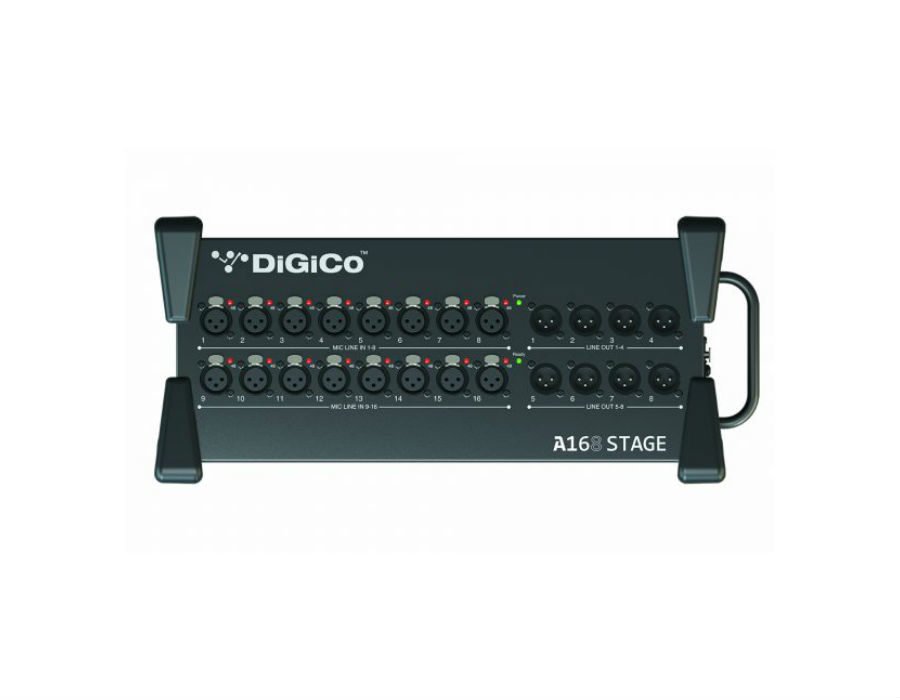

DiGiCo A168 STAGE

DiGiCo A168 STAGE

16 mic/line in and 8 line out I/O Expander, using A3232 network protocol and providing additional I/O anywhere on the network.  Up to two A168STAGE can be daisy-chained via A3232, or the second A3232 port can be used to create redundant network.

• 16 Mic Preamps on XLR with Phantom Power status LEDs
• 8 XLR Line Outs
• Proprietary CAT5e connection via new DiGiCo A3232 protocol
• 2 x A3232 Port for expansion or redundancy

WORKSURFACE

25 x 100mm touch-sensitive, motorised faders
1 x 17” LCD high-brightness, high-resolution touchscreens
41 x Full Colour TFT LCD Displays
1 x ¼” Headphone socket
1 x 3.5mm Headphone socket
1 x USB 2.0 slot
Keyboard Light Bar
Integrated Light Bar
1 x Mounting Bracket

A&E SPECIFICATION

The DiGiCo Quantum225 shall have 25 faders split into 2 worksurface sections of 12 faders, plus a master fader. Both of the two sections shall have 3 layers of 4 banks. All faders can be assigned to control any of the channel types. The console shall be capable of 72 input channels, 36 Aux/Sub-group Busses, a LR/LCR Master Buss, 12 VCA style or mute group style Control Group channels, 2 Solo Busses, and a 12 input x 12 output full processing Matrix. All processing paths shall have full processing including Tube emulation, Dynamic EQ and
Multiband Compression. Tube emulation, Dynamic EQ and Multiband Compression shall be available on every channel and Buss on the console. All processing shall be internal and FPGA-Based
