DiGiCo Orange Box

DiGiCo Orange Box

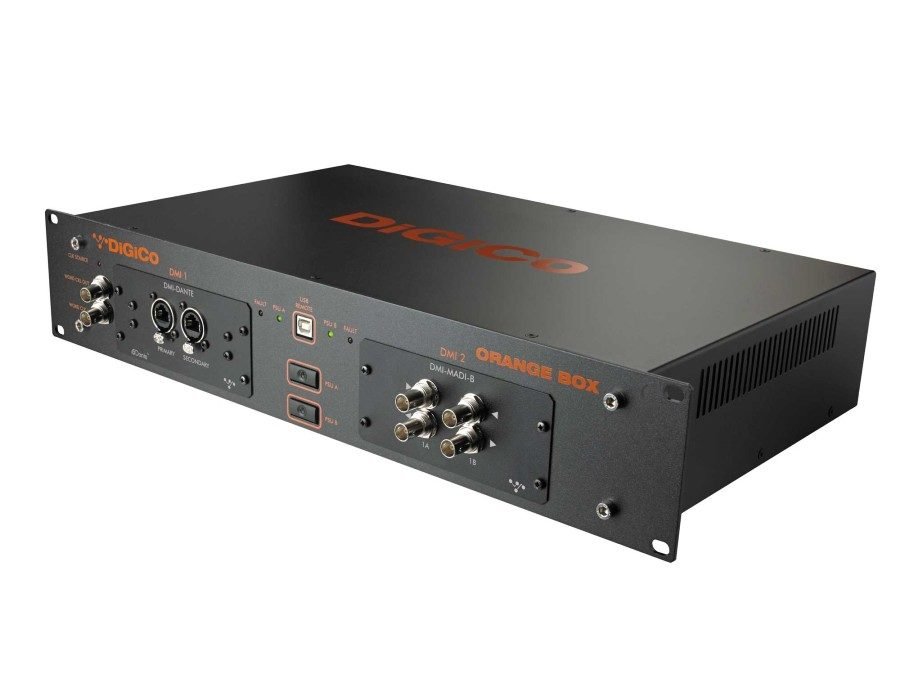

Orange Box With DiGiCo’s compact 2U Orange Box, you can use DMI (DiGiCo Multichannel Interface) cards to create audio paths over whatever interface you desire. The Orange Box has 2 PSUs for redundancy, and 2 slots to accommodate any of our [ten*] different interfaces that allow you to convert pretty much any format to another.

How? We have Slot A and Slot B, let’s say you have MADI on your product, but you want to go to Dante. No problem, just buy a DMI with MADI, and a DMI with Dante, connect them up via the two slots, and away you go.

It’s the same with Hydra 2, Optocore, Aviom, AES, Analogue, and so on. This cool little ‘anything in, anything out’ box essentially gives you a choice of Multichannel user interfaces that enable you to send audio wherever you want, in whatever format you choose.

■ Converts between formats using DMI cards
■ 2U Rack Mountable
■ Redundant PSUs

CONNECTIONS

2 x DMI Slots (up to 64 I/O per slot)
1 x USB Remote (USB 2.0 Type B)
1 x Word Clock I/O BNC
2 x Redundant PSUs

The DiGiCo Orange Box shall be a bidirectional format converter between two different DiGiCo Multichannel Interface (DMI) cards. It shall be capable of converting up to 64 inputs and 64 outputs. The routing between the cards shall be set as 1 to 1.

The front panel shall have two DMI slots for the two format types to be converted between. It shall also have external Wordclock I/O and a USB Type B connector on the front of the unit. This USB port shall allow connection to a computer running the Orange Box Controller software. This software shall allow parameters specific to the cards present to be changed. The rear of the unit shall have two redundant PSUs
