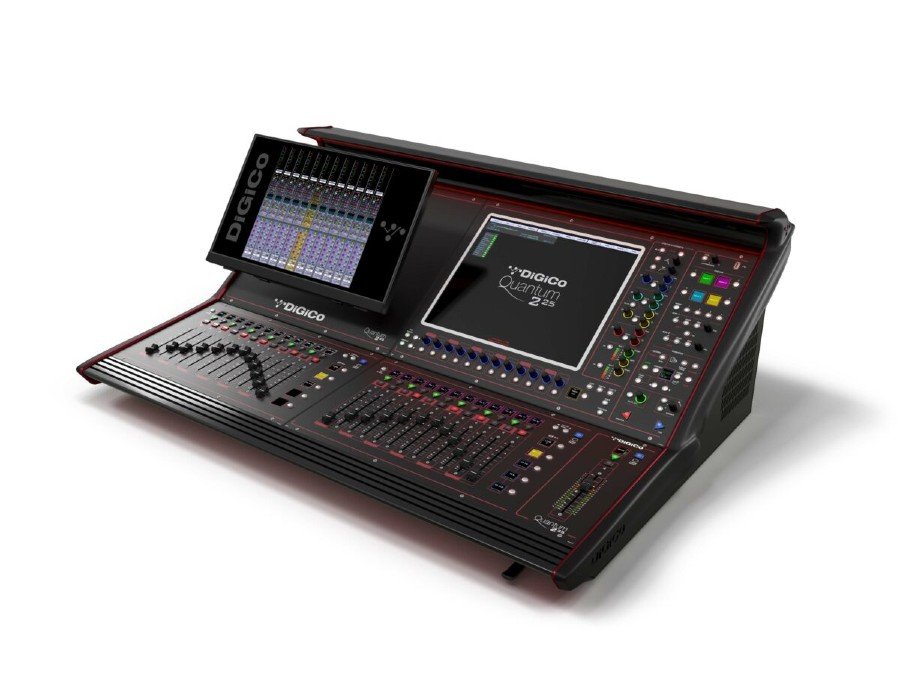

DiGiCo QUANTUM 225

DiGiCo QUANTUM 225

Following on from Quantum 338, Quantum 225 brings the power of Quantum in a compact and robust worksurface.

Quantum 225 incorporates all of the new design features introduced in 2020 with the Quantum 338, and of course uses three large-scale seventh generation FPGAs to continue the unrivaled Quantum legacy. The console merges tried and tested workflows with immense processing muscle, bold innovation and all of the Quantum features, giving you the ultimate tool set.

• 72 Input Channels
• 36 Aux / Sub-Group Busses
• LR/LCR Master Buss
• 12 x 12 Full Processing Matrix
• 155 Dynamic Equalizers
• 48/96 kHz Sample Rate

WORKSURFACE

25 x 100mm touch-sensitive, motorised faders
1 x 17” LCD high-brightness, high-resolution touchscreens
41 x Full Colour TFT LCD Displays
1 x ¼” Headphone socket
1 x 3.5mm Headphone socket
1 x USB 2.0 slot
Keyboard Light Bar
Integrated Light Bar
1 x Mounting Bracket

The DiGiCo Quantum225 shall have 25 faders split into 2 worksurface sections of 12 faders, plus a master fader. Both of the two sections shall have 3 layers of 4 banks. All faders can be assigned to control any of the channel types. The console shall be capable of 72 input channels, 36 Aux/Sub-group Busses, a LR/LCR Master Buss, 12 VCA style or mute group style Control Group channels, 2 Solo Busses, and a 12 input x 12 output full processing Matrix. All processing paths shall have full processing including Tube emulation, Dynamic EQ and
Multiband Compression. Tube emulation, Dynamic EQ and Multiband Compression shall be available on every channel and Buss on the console. All processing shall be internal and FPGA-Based
