DiGiCo SD10

DiGiCo SD10

The SD Ten includes many of our flagship SD7’s features and benefits, including Stealth Digital Processing and floating-point Super FPGA technology, and provides a fully-loaded feature set that will cater to any front-of-house or monitor engineer’s needs.

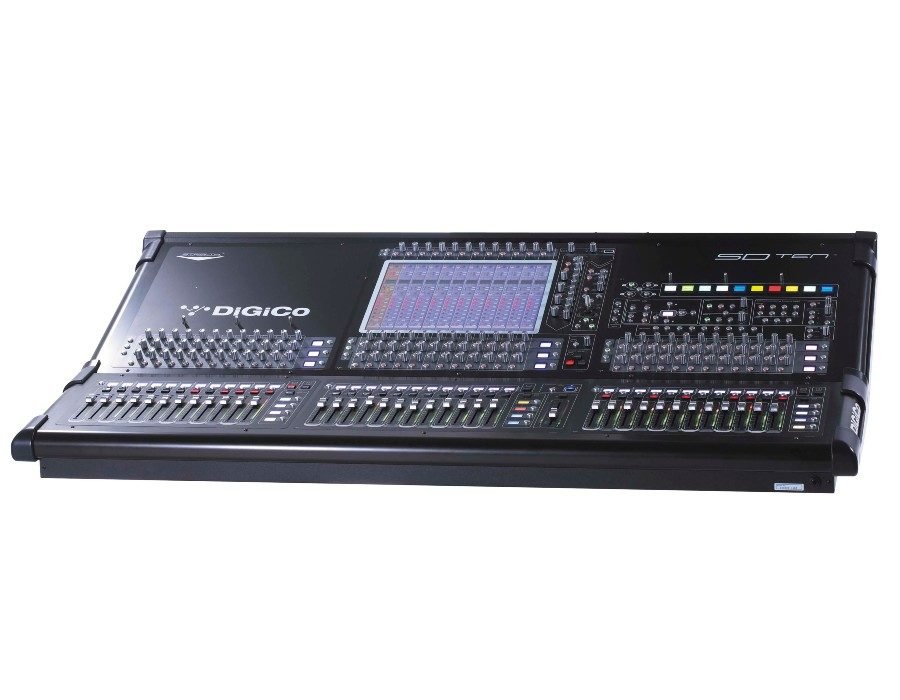

SD Ten features three banks of 12 motorised faders and one master fader, each of which benefits from its own high resolution LED bar graph meter. In the centre of the worksurface sits the familiar 15-inch backlit colour-keyed TFT touch screen, home of the console’s super-intuitive control interface.

The sheer intelligence of the SD Ten means even the most complex of tasks become quick and easy: engineers can recall or save presets on the channel strip; and recall or save snapshots using the master screen or hard wired switches on the console. In addition, special functions can be assigned and accessed instantly via the console’s 40 Smart Key Macros (accessible via four layers of 10 RGB backlit keys) at the push of a button. It really is that simple.

• 144 Input Channels
• 64 Aux / Sub-Group Busses
• LR/LCR/LCRS/5.1 Master Buss
• 24 x 24 Full Processing Matrix
• 218 Dynamic Equalizers
• 48/96kHz Sample Rate

Under The Hood

With 144 processing channels at 48kHz/96kHz, the SD10 packs the muscle to handle the most challenging of shows.

Standard channel processing across inputs and outputs includes Channel Delay, Single and Multi-Channel Presets, Dual insert points, Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ with band curve selection and DiGiCo’s renowned DYN 1 (Compressor, De-esser or Multiband Compressor) and DYN 2 (Gate, Compressor or Ducker).

You will also benefit from 218 Dynamic EQ processors, all of which can be assigned to any input or output channel, delivering dynamic processing over the four standard parametric bands, plus 218 Multiband Compressors and 218 DiGiTuBes.

All channels deliver the same pure signal path and feature set, so no matter how you set up your console, you never lose any resources. Within the master section are 24 gangable 32-band graphic EQs, 24 stereo effects (selectable from a palette of 33), and 24 control groups (VCAs). Using snapshots, engineers can switch between complete configurations at a touch.

In addition, the SD10’s 64 busses can be configured as groups or auxiliary busses, while even more configurability is delivered by a 24 x 24 output matrix, dual solo busses, and a Master buss. Unlike all other digital console manufacturers, you don’t lose Aux or Group Busses when using the Matrix as they are in addition, including the Master buss.
